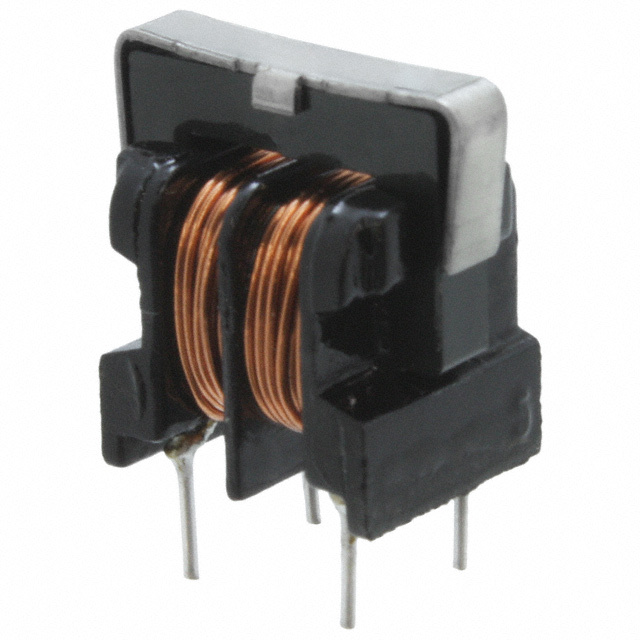

52705C Murata Power Solutions Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

52705C

Part No 52705C
Manufacturer Murata Power Solutions Inc.
Catalog Common Mode Chokes
Description CMC 2.2A 2LN TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Power Line
Number of Lines 2
Current Rating (Max) 2.2A
DC Resistance (DCR) (Max) 107mOhm
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Through Hole
Size / Dimension 0.945" L x 0.642" W (24.00mm x 16.30mm)
Height (Max) 1.220" (31.00mm)
Case / Package Vertical, 4 PC Pin
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1530301-52705C
Ultra Librarian 3D Model Ultra Librarian 52705C CAD Model
