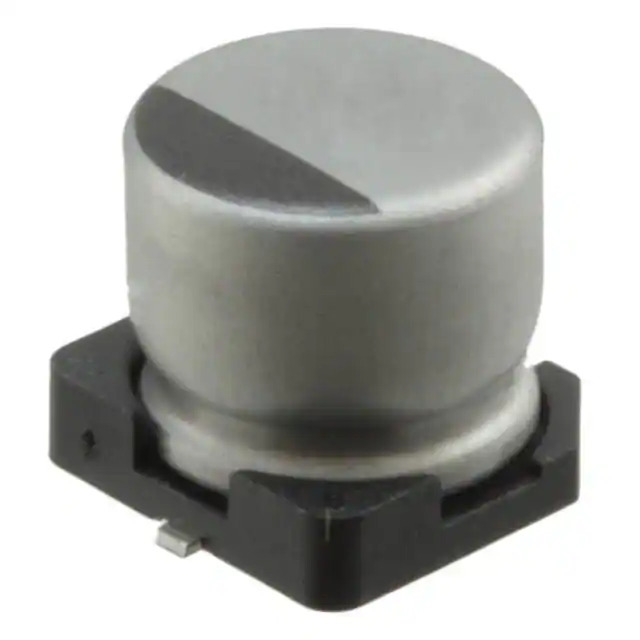

Same model may have multiple batches, images only for reference.

UUR1H220MCL1GS

Name: UUR1H220MCL1GS
Brand: Nichicon
SKU: 1360257
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UUR1H220MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 50V SMD / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet	UUR1H220MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUR
Package	Tape & Reel
Product Status	Last Time Buy
Capacitance	22 µF
Tolerance	±20%
Voltage - Rated	50 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	-
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	45 mA @ 120 Hz
Ripple Current @ High Frequency	75.15 mA @ 10 kHz
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360257-UUR1H220MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UUR1H220MCL1GS CAD Model

Description

The UUR1H220MCL1GS is a radial, can - SMD type aluminum electrolytic capacitor from Nichicon's UUR series.

Manufacturer: Nichicon
Capacitance: 22 µF ±20%
Rated Voltage: 50 V
Temperature Range: -40°C to 85°C
Ripple Current (120 Hz): 45 mA
Ripple Current (10 kHz): 75.15 mA
Size/Dimension: 0.248" Dia (6.30mm)
Maximum Seated Height: 0.240" (6.10mm)
Mounting Type: Surface Mount
Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
REACH: Unaffected
ECCN: EAR99
Polarization: No
