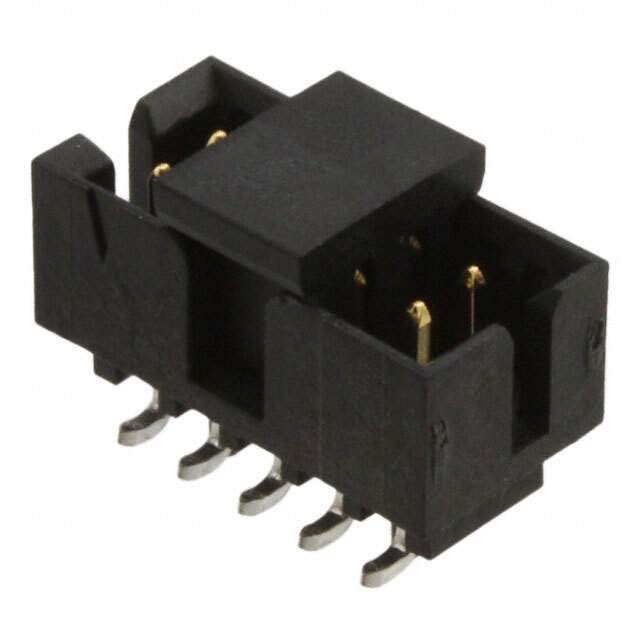

0878321007 Real Image
Same model may have multiple batches, images only for reference.

0878321007

Part No 0878321007
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 10POS 2MM / Connector Header Surface Mount 10 position 0.079" (2.00mm)
Datasheet
0878321007 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.141" (3.60mm)
Insulation Height 0.252" (6.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide, Pick and Place
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8µin (1.90µm)
Applications Automotive, General Purpose, Telecommunications
Base Product Number 087832
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 0878321007-ND,087832-1007,WM14375TR,878321007,0878-32-1007,WM14375CT,87832-1007,WM14375DKR
Standard Package 500
Win Source Part Number 1336683-0878321007
Ultra Librarian 3D Model Ultra Librarian 0878321007 CAD Model

Description

The 1336683-0878321007 from Molex is a male pin header connector with a solder termination and a shrouded-4 wall shrouding.

  • Positions Loaded: 10 (All positions)
  • Pitch: 0.079 inches (2.00mm)
  • Features: Board Guide, Pick and Place
  • Contact Material: Phosphor Bronze
  • Contact Finish-Mating: Gold, 30.0µin (0.76µm)
  • Contact Finish-Post: Tin, 74.8µin (1.90µm)
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Insulation Color: Black
  • Mounting Style: Surface Mount
  • Standard Package: 500
  • ROHS3 Compliant: Yes
  • REACH Affected: No
