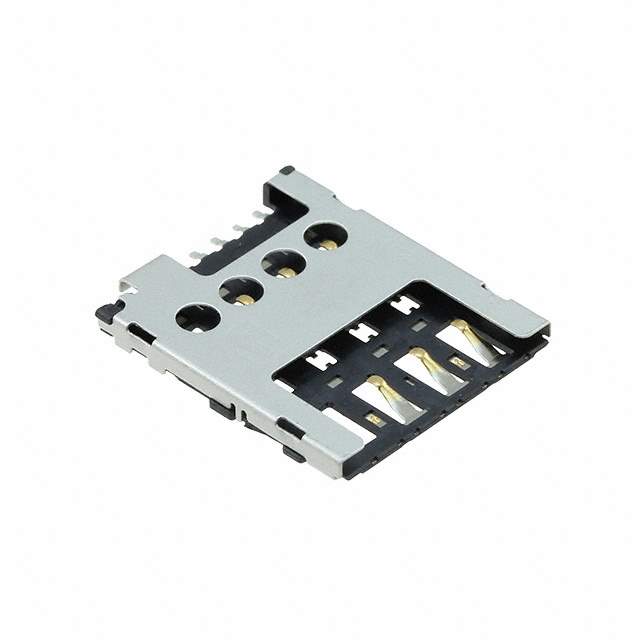

78646-3001 Real Image
Same model may have multiple batches, images only for reference.

78646-3001

Part No 78646-3001
Manufacturer Molex, LLC
Catalog Memory Connectors - Accessories
Description Conn Micro SIM Card SKT 6 POS 2.54mm Solder RA SMD Embossed T/R 0.5A/Contact
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze, Gold, Nickel
Contact Plating Gold
Country of Origin CN
Current Rating 500 mA
Depth 15.45 mm
ELV Compliant
Gender Female
Halogen Free Low Halogen
Height 1.45 mm
Housing Material Stainless Steel
Length 13.05 mm
Material Bronze
Maximum Operating Temperature 85 °C
Max Voltage Rating (DC) 15 V
Min Operating Temperature -30 °C
Mount Standard, Surface Mount
Number of Circuits 6
Number of Contacts 6
Number of Rows 4
Orientation Right Angle
Pitch 2.54 mm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536695050, 8536695050
Shielding Shielded
Termination SMD/SMT
Voltage Rating 15 V
Voltage Rating (DC) 15 V
Weight 243.012112 mg
Win Source Part Number 1040813-78646-3001
Categories Memory Connectors - Accessories
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 78646-3001 CAD Model

Description

The Molex 1040813-78646-3001 is a female connector with 6 contacts and a pitch of 2.54 mm.

  • Contacts: 6
  • Pitch: 2.54 mm
  • Voltage Rating: 15 V
  • Current Rating: 500 mA
  • Contact Material: Bronze
  • Contact Plating: Gold and Nickel
  • Orientation: Right-Angle
  • Mounting: Through Standard or Surface Mount
  • Housing Material: Stainless Steel
  • Height: 1.45 mm
  • Low Halogen: Yes
  • RoHS-Compliant: Yes
  • Operating Temperature: -30 °C to 85 °C
  • Supply and Demand Status: Short
  • Popularity: Low
