Same model may have multiple batches, images only for reference.

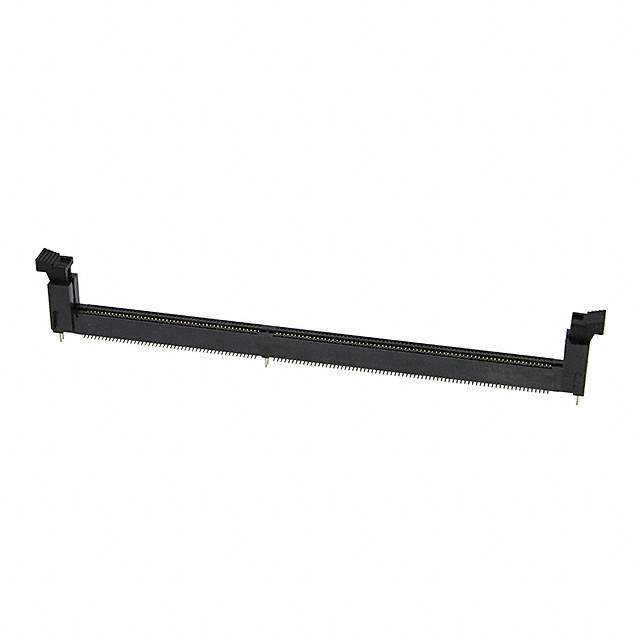

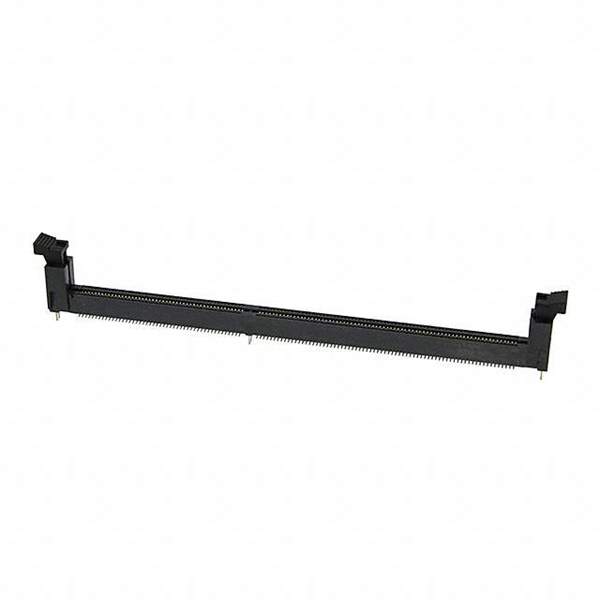

78156-0001 Real Image
Same model may have multiple batches, images only for reference.

78156-0001

Part No 78156-0001
Manufacturer Molex, LLC
Catalog Memory Connectors - Accessories
Description Conn DIMM Socket SKT 240 POS 1mm Solder ST SMD DDR3 DIMM Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Module
Connector Type Socket
Contact Plating Gold
Country of Origin SG
Current Rating 1 A
ELV Compliant
Flammability Rating UL94 V-0
Housing Color Black
Housing Material Thermoplastic
Insulation Material Polymer
Lead Free Yes
Length 148 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (DC) 3.03 kV
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Circuits 240
Number of Contacts 240
Number of Positions 240
Number of Rows 2
Orientation Straight
Pitch 1 mm
Plating Tin
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Row Spacing 1.27 mm
Termination SMD/SMT
Voltage Rating (AC) 30 V
Voltage Rating (DC) 30 V
Weight 8.847007 g
Win Source Part Number 1026103-78156-0001
Categories Memory Connectors - Accessories
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 78156-0001 CAD Model

Description

The 1026103-78156-0001 Memory Connector is a socket-type connector that is ideal for various memory applications, including computer, telecommunications, and consumer electronics.

  • Connector Type: Socket
  • Applications: Computer, Telecommunications, and Consumer Electronics
  • Positions: 240
  • Pitch: 1mm
  • Rows: 2
  • Housing Color: Black
  • Housing Material: Thermoplastic
  • Current Rating: 1A
  • Contact Plating: Gold
  • Mounting Style: Surface-Mount Device (SMD)
  • RoHS: Compliant
  • ECCN: EAR99
