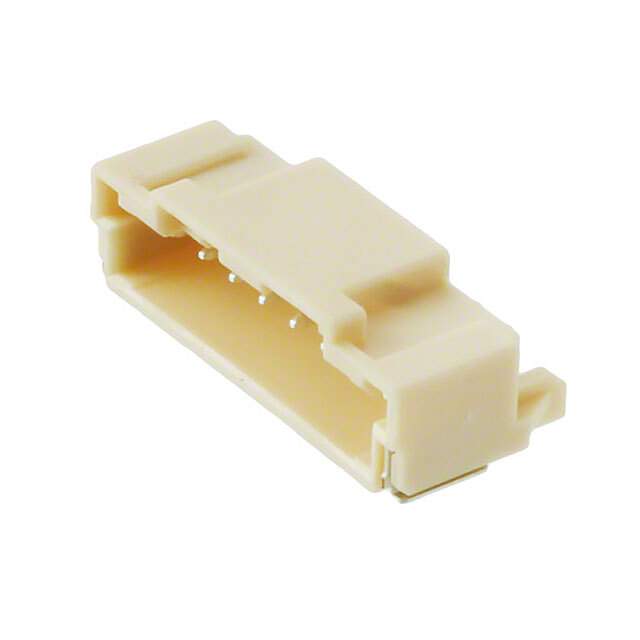

5023520800

Name: 5023520800
Brand: Molex, LLC
SKU: 856277
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5023520800
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 8POS 2MM / Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm)
Datasheet	5023520800 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex, LLC
Series	DuraClik 502352
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Mating	0.136" (3.45mm)
Insulation Height	0.252" (6.40mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Applications	Automotive, Industrial
Base Product Number	502352
Standard Package	700 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856277-5023520800
Ultra Librarian 3D Model	Ultra Librarian 5023520800 CAD Model

Description

The DuraClik 502352 Header is a high-quality male pin connector that provides a secure and reliable connection for your electronic devices.

Positions: 8
Pitch: 0.079" (2.00mm)
Feature: Solder retention
Fastening: Latch lock
Contacts: Copper alloy
Housing: Polyamide (PA), nylon
Mounting: Surface mount and right angle
Applications: Automotive and industrial
