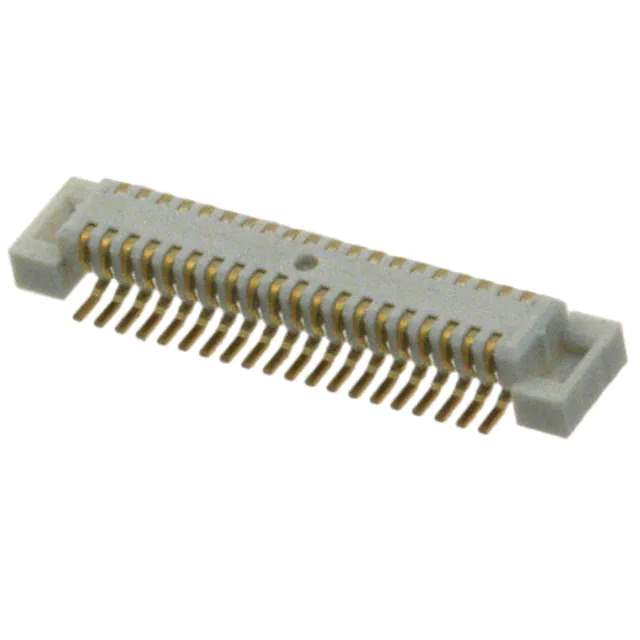

AXK6F80547YG Real Image
Same model may have multiple batches, images only for reference.

AXK6F80547YG

Part No AXK6F80547YG
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HDR 80POS SMD GOLD / 80 Position Connector Header, Center Strip Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P5KF
Package Tape & Reel
Product Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 80
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Contact Finish Gold
Mated Stacking Heights 2.5mm
Height Above Board 0.069" (1.75mm)
Base Product Number AXK6F80547
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862774-AXK6F80547YG
Ultra Librarian 3D Model Ultra Librarian AXK6F80547YG CAD Model

Description

The 862774-AXK6F80547YG is a rectangular connector array from Panasonic's P5KF series.

  • Positions: 80
  • Pitch: 0.020" (0.50mm)
  • Connector Type: Header
  • Contacts: Center Strip
  • Rows: 2
  • Contact Finish: Gold
  • Package: Tape & Reel
  • Mated Stacking Heights: 2.5mm
  • Height Above Board: 0.069" (1.75mm)
  • Mounting: Surface Mount
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
  • Base Product Number: AXK6F80547
  • Manufacturer: Panasonic
  • Status: Active
