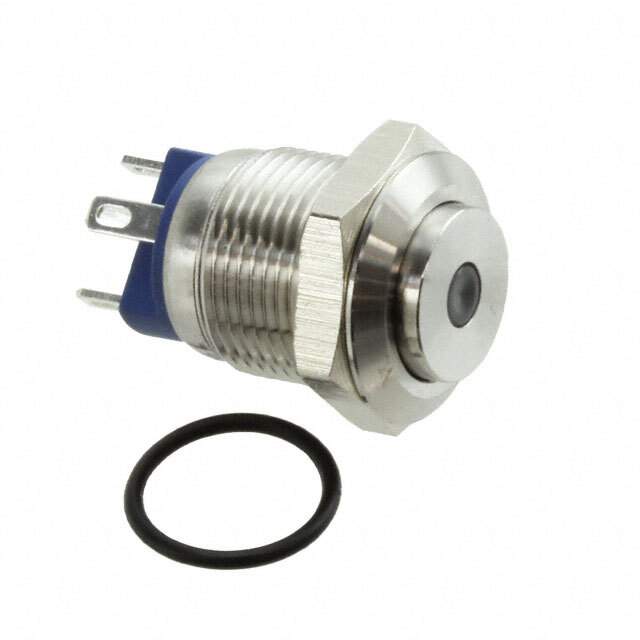

MAV0120/3D1AM012 Real Image
Same model may have multiple batches, images only for reference.

MAV0120/3D1AM012

Part No MAV0120/3D1AM012
Manufacturer Bulgin
Catalog Pushbutton Switches
Description SWITCH PUSHBUTTON SPST-NO 2A 36V / Switch Push Button N.O. SPST Round Button 2A 36VDC Momentary Contact Panel Mount Solder Tab
Datasheet
MAV0120/3D1AM012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Bulgin
Series MAV0120
Packaging Tray
Type Vandal Resistant, Illuminated
Circuit SPST-NO
Switch Function Off-Mom
Current Rating 2A (DC)
Voltage Rating - DC 36V
Actuator Type Round, Button
Color - Actuator/Cap Silver
Illumination Type, Color LED, Amber
Illumination Voltage (Nominal) 12 VDC
Mounting Panel Mount, Front
Termination Style Solder Lug
Ingress Protection IP67 - Dust Tight, Waterproof
Features Stainless Steel
Panel Cutout Dimensions Circular - 12.00mm Dia
Operating Temperature Range -25°C ~ 55°C
Mechanical Life 500,000 Cycles
Electrical Life 200,000 Cycles
Win Source Part Number 768419-MAV0120/3D1AM012
Popularity Medium
Supply and Demand Status Limited
Family Name MAV0120
ECCN EAR99
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian MAV0120/3D1AM012 CAD Model

Description

The Bulgin MAV0120 switch is a vandal-resistant, illuminated type switch with a silver color actuator/cap.

  • Operating Temperature: -25°C to 55°C
  • Current Rating: 2A (DC)
  • Ingress Protection: IP67
  • Voltage Rating: 36VDC
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Round, button
  • Mechanical Life: 500,000 cycles
  • Electrical Life: 200,000 cycles
  • Package Type: Tray
  • Win Source Part Number: 768419-MAV0120/3D1AM012
