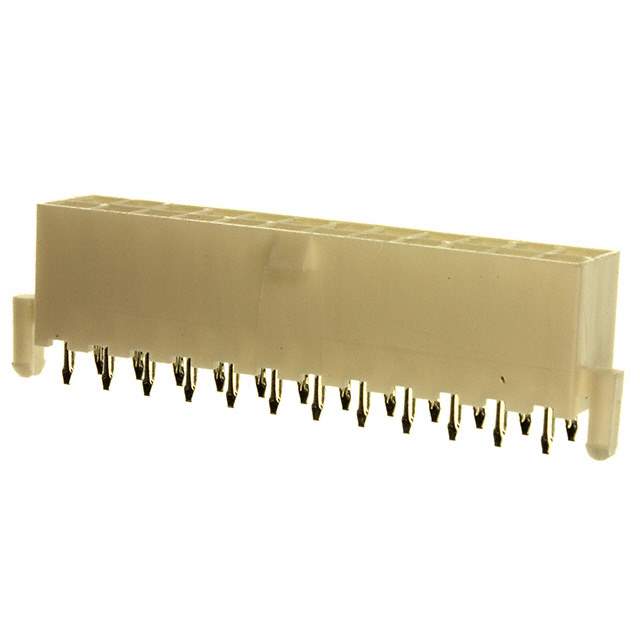

0039299246 Real Image
Same model may have multiple batches, images only for reference.

0039299246

Part No 0039299246
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 24POS 4.2MM / Connector Header Through Hole 24 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 24
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35.4µin (0.90µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 35.0µin (0.90µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 003929
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM3874,WM3874-ND,39299246,39-29-9246,23-0039299246,5566-24B2-210
Standard Package 1
Win Source Part Number 1332863-0039299246
Ultra Librarian 3D Model Ultra Librarian 0039299246 CAD Model

Description

The Molex 1332863-0039299246 is a rectangular connector used in various applications such as general purpose, industrial, and telecommunications.

  • Connector Type: Male Pin Header
  • Positions: 24
  • Rows: Two
  • Contact Material: Brass
  • Voltage Rating: -
  • Mounting Type: Through Hole
  • Pitch Mating: 0.165 inches
  • Insulation Material: Polyamide (PA66) and Nylon 6/6
  • Insulation Color: Natural
  • Shrouding: 4 Walls
  • Row Spacing Mating: 0.165 inches
  • Contact Finish Mating: Tin with a thickness of 35.4μin (0.90μm)
  • Contact Finish Post: Tin with a thickness of 35.0μin (0.90μm)
  • ROHS3 Compliant: Yes
