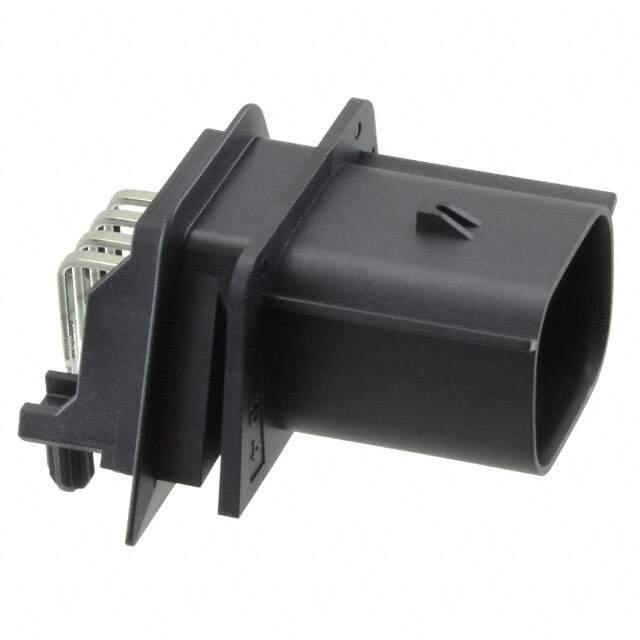

0348300801 Real Image
Same model may have multiple batches, images only for reference.

0348300801

Part No 0348300801
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 3.5MM / Connector Header Through Hole, Right Angle 8 position 0.138" (3.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.138" (3.50mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.138" (3.50mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 1.014" (25.75mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide
Temperature Range - Operating -40°C ~ 125°C
Ingress Protection IP67/IP69K - Dust Tight, Water Resistant, Waterproof
Insulation Color Black
Voltage Rating 14VDC
Applications Automotive
Base Product Number 034830
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 034830-0801,WM14555,34830-0801,348300801,0348300801-ND
Standard Package 420
Win Source Part Number 1332911-0348300801
Ultra Librarian 3D Model Ultra Librarian 0348300801 CAD Model

Description

The Molex 1332911-0348300801 is a rectangular male blade header connector with 8 positions and 2 rows.

  • Connector Material: Copper alloy
  • Voltage Rating: 14VDC
  • Features: Locking ramp for secure fastening
  • IP Rating: IP67/IP69K rated for dust tight, water-resistant, and waterproof properties
  • Mounting: Designed for through-hole and right-angle mounting
  • Insulation Material: Polybutylene terephthalate (PBT) and glass-filled
  • Application Suitability: Suitable for use in automotive applications.
