Same model may have multiple batches, images only for reference.

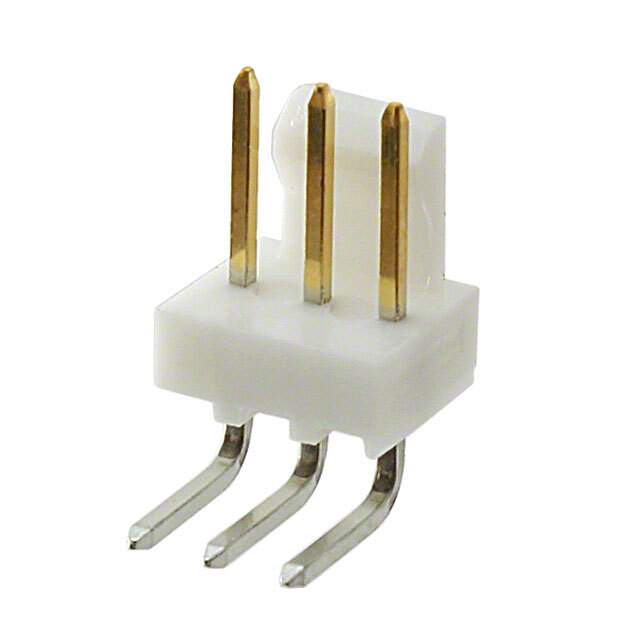

0022122034 Real Image
Same model may have multiple batches, images only for reference.

0022122034

Part No 0022122034
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 3POS 2.54MM / Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.264" (6.70mm)
Contact Length - Post 0.141" (3.58mm)
Insulation Height 0.250" (6.35mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color White
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 002212
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 22-12-2034-P,22-12-2034,0022122034-P,22122034-P,WM2712,22122034,0022-12-2034-P,A-7478-03A241,WM2712-NDR,0022-12-2034
Standard Package 1,900
Win Source Part Number 1332739-0022122034
Ultra Librarian 3D Model Ultra Librarian 0022122034 CAD Model

Description

The 1332739-0022122034 is a male pin header connector with a through-hole, right-angle mounting style.

  • Connector Type: Male Pin Header
  • Mounting Style: Through-Hole, Right-Angle
  • Manufacturer: Molex
  • Pitch-Mating: 0.100 inches
  • Contact Finish-Mating: Gold, 20.0µin
  • Contact Finish-Post: Tin, 100.0µin
  • Insulation Material: Polyamide
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 1,900
  • Industries: Automotive, General Purpose, Medical, Telecommunications
  • MSL Level: Unlimited
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Other Part Numbers: 22-12-2034-P, 22-12-2034, 0022122034-P, 22122034-P, WM2712, 22122034, 0022-12-2034-P, A-7478-03A241, WM2712-NDR, 0022-12-2034
