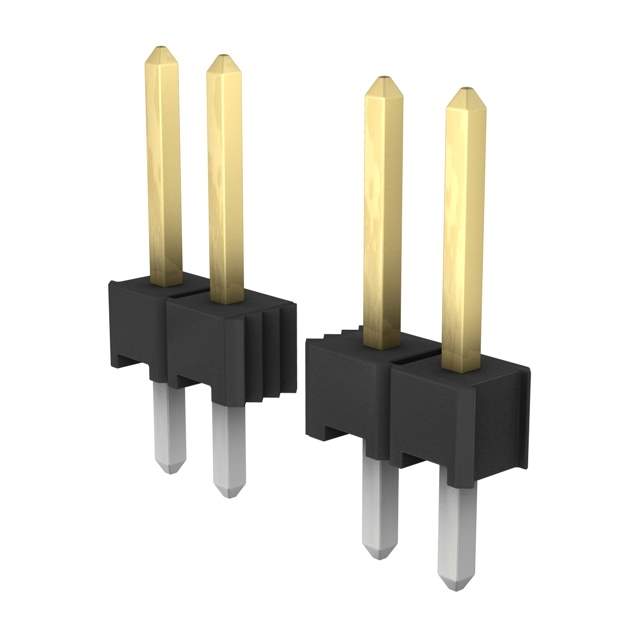

6-146276-0 Real Image
Same model may have multiple batches, images only for reference.

6-146276-0

Part No 6-146276-0
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.318" (8.08mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.533" (13.55mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0μin (0.38μm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post 100.0μin (2.54μm)
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809101-6-146276-0
Ultra Librarian 3D Model Ultra Librarian 6-146276-0 CAD Model

Description

The 809101-6-146276-0 header, breakaway connector from TE Connectivity AMP Connectors is a high-quality connector.

  • Contact Type: Male Pin
  • Mounting Type: Through Hole
  • Pitch: 0.100 inches or 2.54mm
  • Current Rating: 3A
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0μin or 0.38μm
  • Temperature Range: -65°C to 105°C
  • Applications: Board-to-board or cable
