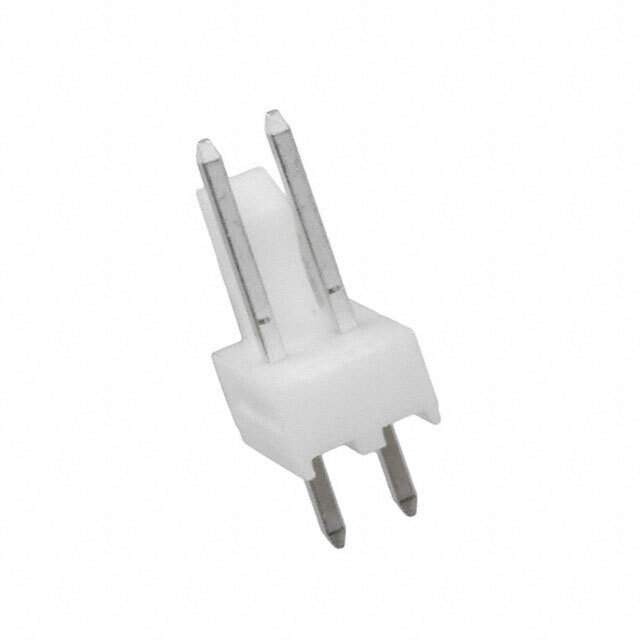

22-23-2021 Real Image1 22-23-2021 Real Image2
Same model may have multiple batches, images only for reference.
22-23-2021 Real Image1 22-23-2021 Real Image2
22-23-2021 Real Image1 22-23-2021 Real Image2
Same model may have multiple batches, images only for reference.

22-23-2021

Part No 22-23-2021
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 2POS .100 VERT TIN
Datasheet
22-23-2021 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Board or Cable
Shrouding Shrouded - 1 Wall
Number of Positions 2
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.140" (3.56mm)
Overall Contact Length 0.560" (14.22mm)
Insulation Height 0.322" (8.18mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color White
Contact Finish Thickness - Post 100μin (2.54μm)
Applications Automotive, General Purpose, Medical, Telecommunications
Win Source Part Number 052732-22-23-2021
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Application Field Used in Signal Processing, Industrial
Ultra Librarian 3D Model Ultra Librarian 22-23-2021 CAD Model

Description

Product Overview

The 22-23-2021 connector kit is designed for versatile usage in electrical and electronic projects, offering lasting durability and reliability.

Applications

  • Computer Systems
  • Networking Equipment
  • Consumer Appliances
  • Robotics

Features and Benefits

  • High-quality material construction
  • Reliable connectivity
  • Easy assembly and installation
  • Wide compatibility with various systems

Additional Details

This connector kit provides dependable performance and simple installation, facilitating easy maintenance and upgrades in complex systems.
