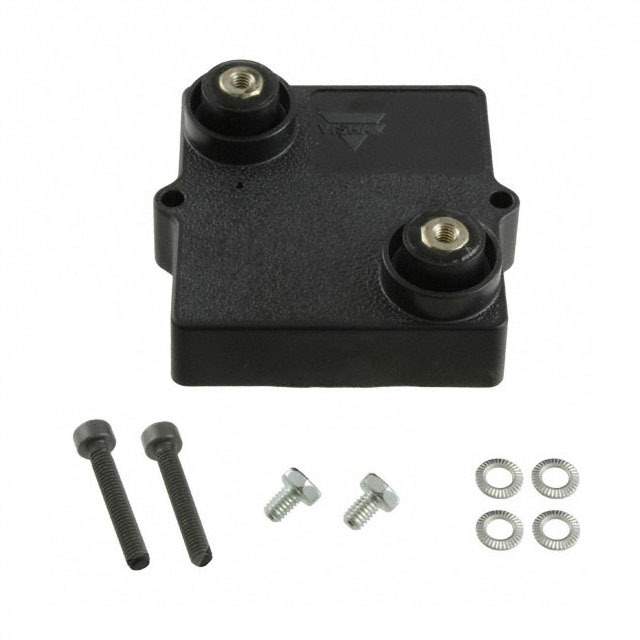

LPS1100H4700JB Real Image
Same model may have multiple batches, images only for reference.

LPS1100H4700JB

Part No LPS1100H4700JB
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 470 OHM 5% 1100W / 470 Ohms ±5% 1100W Thick Film Chassis Mount Resistor
Datasheet
LPS1100H4700JB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr Vishay Sfernice
Series LPS 1100
Package Bulk
Resistance 470 Ohms
Tolerance ±5%
Power (Watts) 1100W
Composition Thick Film
Temperature Coefficient ±150ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Features Non-Inductive
Mounting Feature Flanges
Dimension 2.362" L x 2.244" W (60.00mm x 57.00mm)
Height - Seated (Max) 1.055" (26.80mm)
Lead Style M4 Threaded
Package / Case Box
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Other Names LPS-470D,LBS-470D-ND,LBS-470D
Standard Package 15
Win Source Part Number 1070685-LPS1100H4700JB
Ultra Librarian 3D Model Ultra Librarian LPS1100H4700JB CAD Model

Description

The LPS 1100 series thick film chassis mount resistor is a non-inductive resistor with a resistance of 470 Ohms.

  • Power Rating: 1100W
  • Tolerance: ±5%
  • Temperature Coefficient: ±150ppm/°C
  • Operating Temperature Range: -55°C to 200°C
  • Package: bulk
  • Lead Style: M4 threaded
  • Mounting Feature: flanges
  • Dimension: 2.362" L x 2.244" W (60.00mm x 57.00mm)
  • Height: 1.055" (26.80mm)
  • Alternative Part: SMW5470RJT, CRCW1206470RJNEAC, CRA06P083470RJTA, CRCW0402470RFKEDC, SMW5430RJT, SMF5510RJTLPS1100H4700JB
