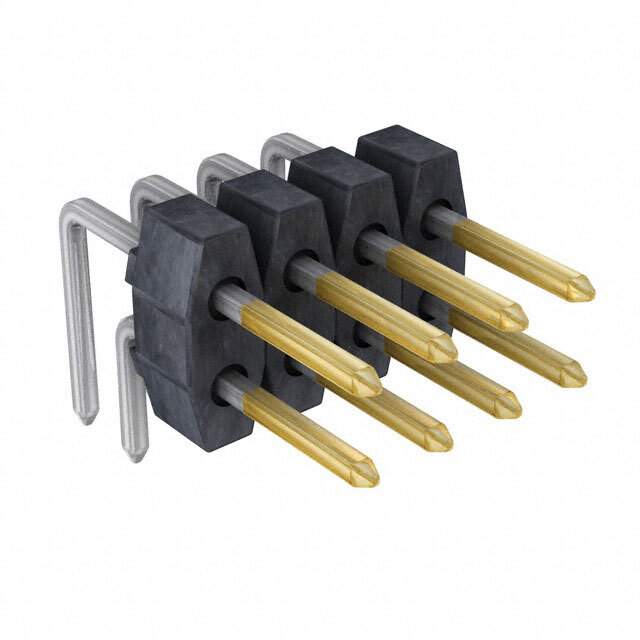

Same model may have multiple batches, images only for reference.

0901220922

Get a Quote

Part No	0901220922
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 4POS 2.54MM / Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex, LLC
Series	C-Grid III 90122
Package	Tray
Product Status	Active
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	4
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.266" (6.75mm)
Contact Length - Post	0.114" (2.90mm)
Insulation Height	0.242" (6.14mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	118.1µin (3.00µm)
Applications	Automotive, General Purpose
Base Product Number	090122
Standard Package	3,200 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853438-0901220922
Ultra Librarian 3D Model	Ultra Librarian 0901220922 CAD Model

Description

The C-Grid III 90122 is a header connector with male pins designed for use in various electronic applications manufactured by Molex, LLC.

Positions: 4
Pitch: 0.100" (2.54mm)
Design: Breakaway
Termination: Solder
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Applications: Automotive and General Purpose
Package: Tray
Quantity per Package: 3,200 pcs
Insulation Material: Polyester and Glass-Filled
