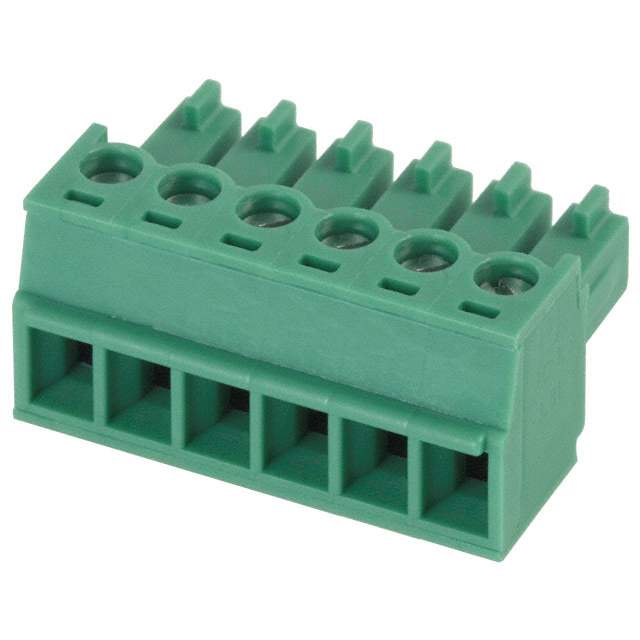

The Phoenix Contact plug with female sockets is designed for interconnects in terminal blocks.

• Positions per level: 6
• Level: 1
• Pitch: 0.150 inches
• Plug wire entry: 180 degrees
• Termination style: screw - rising cage clamp
• Current rating (IEC): 8A
• Current rating (UL): 8A
• Voltage rating (IEC): 320V
• Voltage rating (UL): 300V
• Wire gauge or range for AWG: 14-30
• Wire gauge or range for mm2: 0.14-1.5mm2
• Housing material: polyamide (PA), nylon
• Flammability rating: UL94 V-0
• Standard package: 50
• Mounting style: free hanging (in-line)
• Insulation height: 0.437 inches
• Wire strip length: 7mm
• ROHS compliant: yes
• REACH: unaffected
