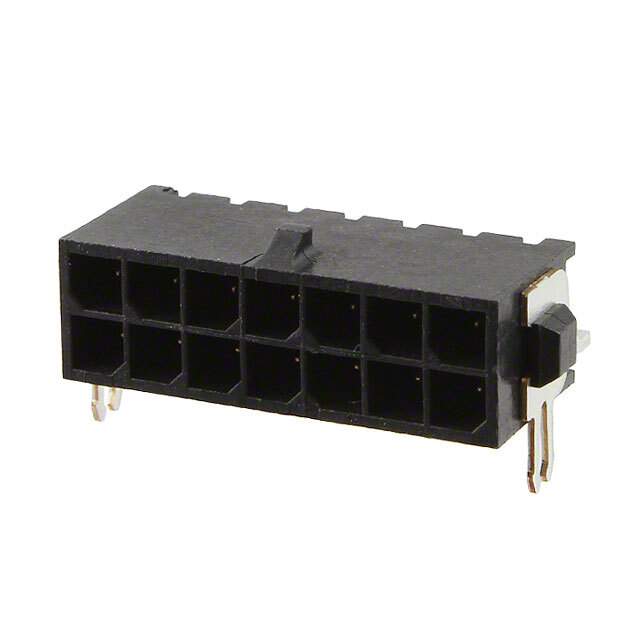

Same model may have multiple batches, images only for reference.

4-794626-4

Name: 4-794626-4
Brand: TE Connectivity
SKU: 751391
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	4-794626-4
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER 14POS 2ROW R/A SMD
Datasheet	4-794626-4 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	TE Connectivity AMP Connectors
Series	Micro MATE-N-LOK
Packaging	Reel package
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.118" (3.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Mounting	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.290" (7.37mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Lock
Operating Temperature Range	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	Varies by Wire Gauge
Voltage Rating	250V
Contact Finish Thickness - Post	100μin (2.54μm)
Applications	General
Win Source Part Number	763704-4-794626-4
Family Name	794626
Introduction Date	May 31, 2005
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2024
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 4-794626-4 CAD Model

Description

The TE Connectivity AMP Connectors 763704-4-794626-4 is a header connector with male pins.

Type: Header Connector
Pins: Male
Wall: Shrouded-4
Category: Connectors and Interconnects
Number of Positions: 14
Positions Loaded: All
Voltage Rating: 250V
Pitch-Mating: 0.118 inches
Contact Finish-Mating: Gold
Contact Finish-Thickness-Mating: 30μin (0.76μm)
Manufacturer: TE Connectivity AMP Connectors
