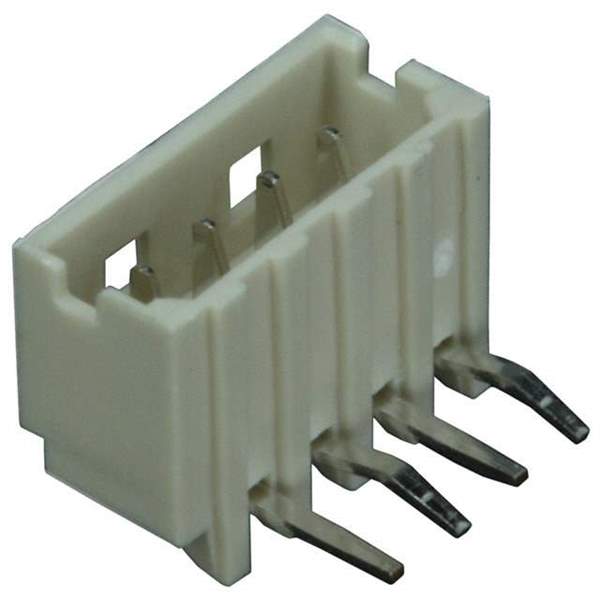

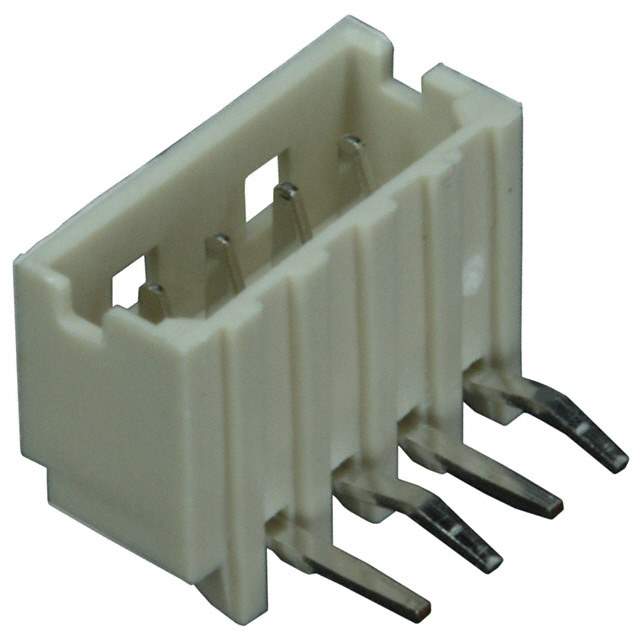

0530150410 Real Image
Same model may have multiple batches, images only for reference.

0530150410

Part No 0530150410
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 4POS 2MM / Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series MicroBlade 53015
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.079" (2.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.122" (3.10mm)
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.183" (4.65mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35.4µin (0.90µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color White
Applications General Purpose, Telecommunications
Base Product Number 053015
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853307-0530150410
Ultra Librarian 3D Model Ultra Librarian 0530150410 CAD Model

Description

The MicroBlade 53015 series is a 4-position male blade header connector designed for general purpose and telecommunications applications.

  • Pin Type: Kinked pin
  • Termination: Solder
  • Contact Material: Phosphor bronze
  • Fastening Type: Detent lock
  • Insulation Material: Polyamide (PA66), nylon 6/6, glass filled
  • Style: Board to cable/wire
  • Mating Pitch: 0.079" (2.00mm)
  • Contact Finish: Tin
  • Mounting: Through-hole
  • Orientation: Right-angle
  • Shrouding: Shrouded with 4 walls
  • Contact Shape: Rectangular
  • Mating Contact Length: 0.122" (3.10mm)
  • Post Contact Length: 0.138" (3.50mm)
  • Flammability Rating: UL94 V-0
  • Packaging: Bulk
