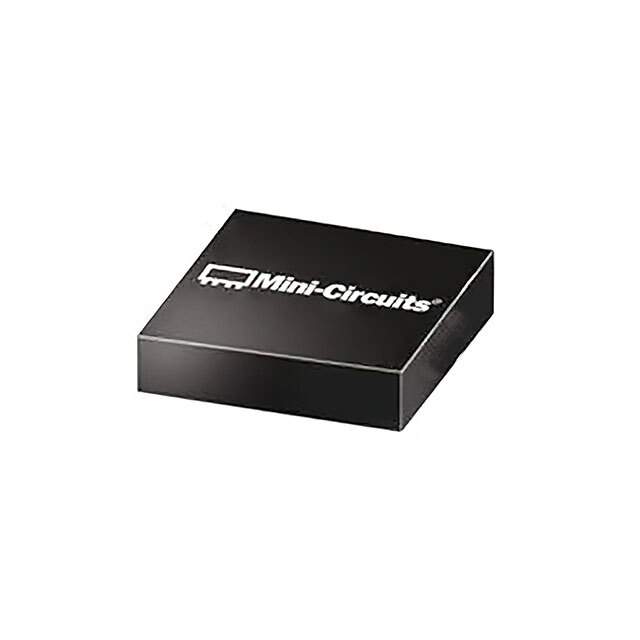

JSW4-272DR+ Real Image
Same model may have multiple batches, images only for reference.

JSW4-272DR+

Part No JSW4-272DR+
Manufacturer Mini-Circuits
Catalog RF Switches
Description IC RF SWITCH SP4T 2.7GHZ 14QFN / RF Switch IC CATV, SatCom SP4T 50Ohm 14-QFN (2x2)
Datasheet
JSW4-272DR+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr Mini-Circuits
Package Tape & Reel
RF Type CATV, SatCom
Topology Reflective
Circuit SP4T
Frequency Range 5MHz ~ 2.7GHz
Isolation 27dB
Insertion Loss 0.6dB
Test Frequency 2.7GHz
IIP3 59dBm
Impedance 50Ohm
Voltage - Supply 2.5V ~ 4.8V
Temperature Range - Operating -40°C ~ 85°C
Package / Case 14-UFQFN Exposed Pad
Supplier Device Package 14-QFN (2x2)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 3157-JSW4-272DR+CT,3157-JSW4-272DR+TR,3157-JSW4-272DR+DKR
Standard Package 500
Win Source Part Number 1066432-JSW4-272DR+
Ultra Librarian 3D Model Ultra Librarian JSW4-272DR+ CAD Model

Description

The 1066432-JSW4-272DR+ is an RF Switch suitable for various applications by Mini-Circuits.

  • Category: RF/IF and RFID>RF Switches
  • Series: High performance and reliability
  • Circuit Topology: SP4T
  • Frequency Range: 5MHz ~ 2.7GHz
  • Package: 14-UFQFN Exposed Pad
