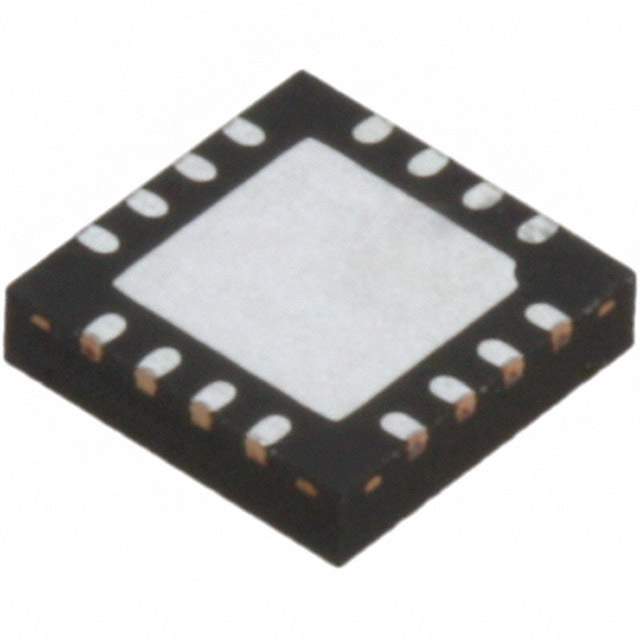

The AS196-307 is a GaAs SPDT (Single Pole Double Throw) switch from Alpha Industries, designed for use in diverse RF and microwave applications. It offers reliable and efficient signal routing between two separate paths, making it suitable for communication systems, test equipment, and radar applications.

Applications:

• Wireless communication systems
• Test and measurement equipment
• Radar systems
• Satellite communication
• RF signal routing

Features:

• SPDT configuration
• Low insertion loss
• High isolation
• Fast switching speed
• GaAs technology
• Surface mount technology (SMT)

Benefits:

• Improved signal integrity due to low insertion loss.
• Reduced crosstalk and interference with high isolation.
• Enhanced system performance with fast switching speed.
• Higher frequency operation due to GaAs technology.
• Simplified circuit design and assembly with SMT compatibility.

Additional Details:

The AS196-307 SPDT switch leverages GaAs (Gallium Arsenide) technology to achieve excellent high-frequency performance. It exhibits low insertion loss, minimizing signal attenuation, and high isolation to prevent unwanted signal leakage between paths. Its fast switching speed facilitates rapid signal routing, making it suitable for high-speed communication and radar systems. Designed for surface mount assembly, it simplifies manufacturing and reduces board space requirements. The GaAs technology allows the switch to operate at higher frequencies compared to silicon-based switches. This makes it an ideal choice for demanding applications where high performance and reliable signal routing are crucial. Alpha Industries' commitment to quality ensures that this component will perform reliably.
