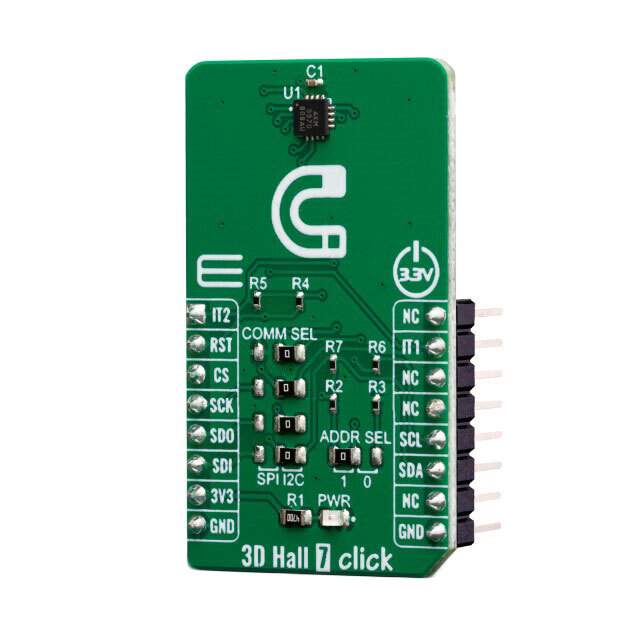

MIKROE-3629 Real Image
Same model may have multiple batches, images only for reference.

MIKROE-3629

Part No MIKROE-3629
Manufacturer MikroElektronika
Catalog Evaluation Boards - Expansion Boards
Description 3D HALL 7 CLICK / AK09970N Magnetic Hall Effect Sensor mikroBUS™ Click™ Platform Evaluation Expansion Board
Datasheet
MIKROE-3629 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers>Evaluation Boards - Expansion Boards, Daughter Cards
Mfr MikroElektronika
Package Bulk
Platform mikroBUS™ Click™
Type Sensor
Function Magnetic Hall Effect
Utilized IC / Part AK09970N
Contents Board(s)
Base Product Number MIKROE
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Other Names 1471-MIKROE-3629
Standard Package 1
Win Source Part Number 1124936-MIKROE-3629
Ultra Librarian 3D Model Ultra Librarian MIKROE-3629 CAD Model

Description

The MIKROE-3629 is a magnetic hall effect sensor board designed by MikroElektronika.

  • Sensor Type: Magnetic Hall Effect
  • IC Used: AK09970N
  • Platform: mikroBUS™ Click™
  • Applications: Magnetic field sensing, compassing, and navigation
