STEVAL-IOD003V1 - STMicroelectronics' IO-Link Device Evaluation Board

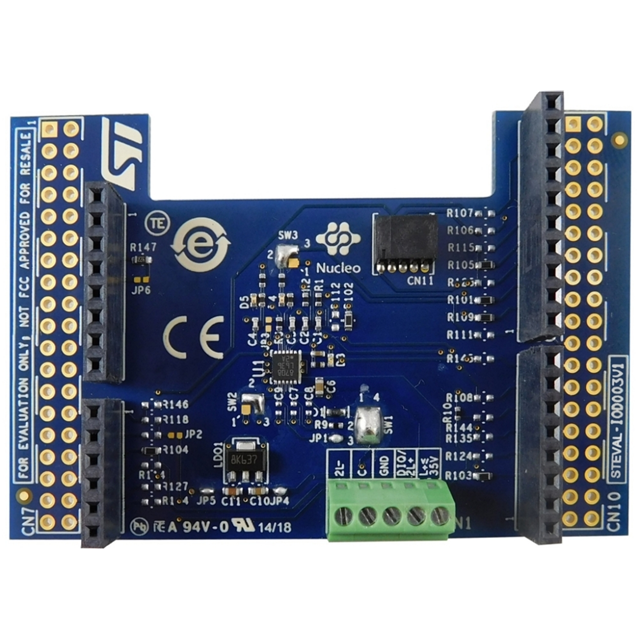

The STEVAL-IOD003V1 from STMicroelectronics is a state-of-the-art evaluation board designed for the development and testing of IO-Link device applications. This board is a part of the extensive range of evaluation tools that STMicroelectronics provides to designers for assessing the performance and capabilities of their IO-Link device series.

The STEVAL-IOD003V1 is built around the L6360, a monolithic IO-Link device transceiver which integrates a physical layer (PHY) compliant with the IO-Link interface and SIO mode standards. It offers a compact solution that combines robustness with enhanced diagnostics and programmable machine control functionalities.

With its user-friendly interface, the evaluation board allows for easy access to the L6360 features, enabling developers to explore the benefits of the IO-Link communication protocol, such as bidirectional data transfer, enhanced diagnostics, and simplified wiring. The board also supports the attachment of various sensors and actuators, making it an ideal platform for developing and prototyping a wide range of industrial applications.

Key features of the STEVAL-IOD003V1 include:

• Integrated L6360 IO-Link device transceiver
• Compliance with IO-Link v1.1 and SIO mode standards
• Extended ambient temperature range: -40°C to 85°C
• Robust 24V nominal supply voltage with extensive protections
• Configurable outputs and multicolor LED indicators
• M12 connector for straightforward interfacing
• Comprehensive set of diagnostics for system monitoring

The board also includes a preloaded firmware that demonstrates the transceiver's functionalities and provides a quick start for users to begin their development process. Additionally, the evaluation board is supported by the STSW-IOD001V1 IO-Link stack, which simplifies the software development process.

Whether for industrial sensor and actuator applications, factory automation, or process control, the STEVAL-IOD003V1 evaluation board is an excellent tool for engineers looking to harness the power of IO-Link technology in their designs.
