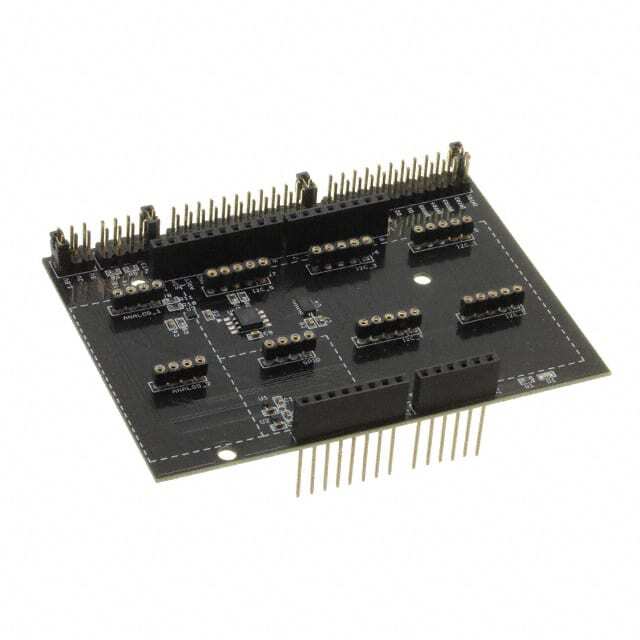

SHIELD-EVK-001 Rohm Semiconductor
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Expansion Boards, Daughter Cards
Mfr Rohm Semiconductor
Package Box
Product Status Obsolete
Platform SensorShield
Type Sensor
Function Multiple
Contents Board(s)
Suggested Programming Environment Arduino
Interconnect System Arduino R3 Shield
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1283907-SHIELD-EVK-001
Ultra Librarian 3D Model Ultra Librarian SHIELD-EVK-001 CAD Model

Description

The 1283907-SHIELD-EVK-001 is a development board designed for sensor applications.

  • Platform: SensorShield
  • Manufacturer: Rohm Semiconductor
  • Package: Box
  • Includes: One piece
  • Type: Evaluation board that can be used to expand and enhance the functionality of other development boards or kits
  • Compatibility: Compatible with Arduino
  • Status: Obsolete
  • Suitable for: Multiple functions and can be utilized in different applications
