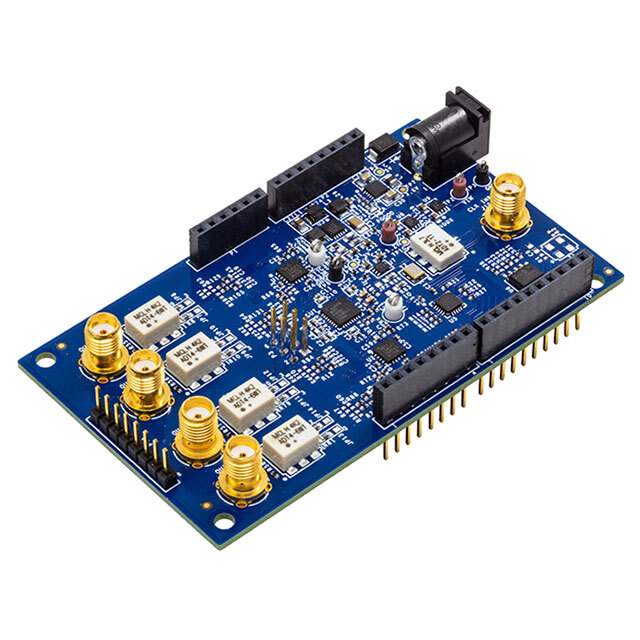

The AD9106-ARDZ-EBZ from Analog Devices Inc. is a high-performance, mixed-signal control processor that serves as an essential building block for complex waveform generation. This evaluation board is specifically designed to showcase the capabilities of the AD9106, a quad-channel, 12-bit, 180 MSPS waveform generator with 8-bit dynamic on-chip DDS (Direct Digital Synthesis) modulators.

Key Features

• Quad-Channel DAC: The device features a quad-channel, 12-bit digital-to-analog converter (DAC) capable of converting digital signals into high-fidelity analog outputs with a sample rate of up to 180 MSPS.
• Integrated DDS: With the integrated 8-bit DDS core, users can generate complex modulated waveforms, such as QAM and FSK, with ease.
• Memory: The AD9106 includes 4096 x 12-bit words of on-chip memory for custom waveform storage, enabling the creation of a wide variety of signal patterns.
• Flexible Configuration: The device is configurable via a 3-wire serial interface, which allows for easy integration into a variety of systems.
• Programmable Clock: Users can program the clock input to suit their specific application needs, providing versatility in waveform generation.

Applications

The AD9106-ARDZ-EBZ is ideal for a range of applications that require precise signal generation, including:

• Baseband communication equipment
• Complex waveform generation
• Signal generators and synthesizers
• Medical instrumentation
• Test and measurement systems

Supporting Documentation

For engineers and designers, the evaluation board comes with comprehensive documentation. This includes a detailed user guide, schematic diagrams, and reference materials to assist in the rapid development and prototyping of systems using the AD9106 waveform generator.

Conclusion

The AD9106-ARDZ-EBZ evaluation board from Analog Devices Inc. is a versatile tool that simplifies the development process for applications requiring high-speed, complex waveform generation. With its robust feature set and extensive support documentation, this board is an invaluable asset for any project involving sophisticated signal processing.
