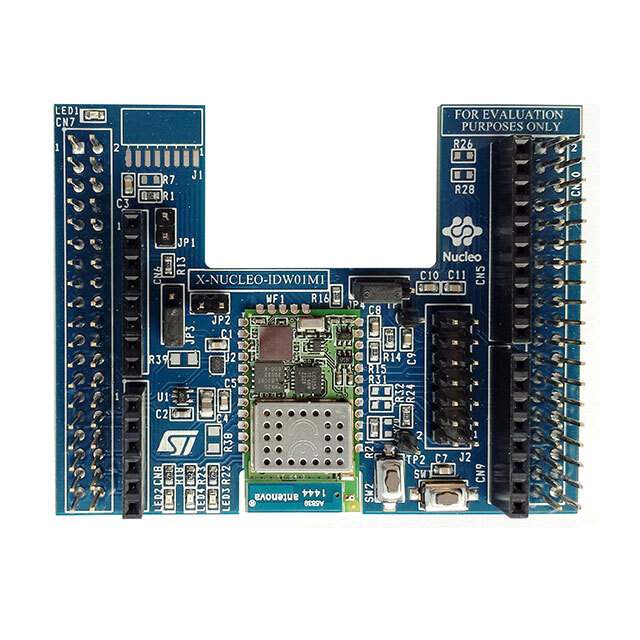

STMicroelectronics X-NUCLEO-IDW01M1 Wi-Fi Expansion Board

The X-NUCLEO-IDW01M1 is a high-performance Wi-Fi expansion board from STMicroelectronics, designed to deliver wireless connectivity to the STM32 Nucleo development boards. This expansion board is based on the SWPF01SA module, which features the SPWF01SA Intelligent Wi-Fi module, providing a seamless integration of Wi-Fi network capabilities and internet protocol stacks.

Key Features

• IEEE 802.11 b/g/n compliant
• Integrated TCP/IP protocol stack
• Easy to integrate with STM32 Nucleo boards through the Arduino UNO R3 connectivity support
• AT command set interface over UART for custom network applications and stack configuration
• Secure Wi-Fi connectivity with WEP/WPA/WPA2 personal security
• On-board SWPF01SA Wi-Fi module with integrated antenna
• Dynamic power management for low-power operation

Applications

The X-NUCLEO-IDW01M1 is ideal for a wide range of applications that require wireless internet connectivity, such as home automation, industrial automation, telemetry, remote monitoring, and IoT (Internet of Things) devices.

Compatibility

This expansion board is fully compatible with the STM32 Nucleo board family, and it can be easily connected via the Arduino UNO R3 connectors. Additionally, it can be powered directly from the Nucleo board or from an external power source if required.

Software Support

STMicroelectronics provides comprehensive software support for the X-NUCLEO-IDW01M1, including firmware and example codes to facilitate rapid development and integration of Wi-Fi functionality into various applications. The support package includes libraries and drivers that are fully compatible with the STM32Cube software framework.

Conclusion

The X-NUCLEO-IDW01M1 expansion board is a highly efficient solution for adding Wi-Fi connectivity to STM32 Nucleo projects. With its easy-to-use interface and robust software support, it is an excellent choice for developers looking to leverage wireless communication in their embedded systems.
