Microchip Technology's PIC16F1509-I/P Microcontroller

The PIC16F1509-I/P from Microchip Technology is a versatile and powerful microcontroller that is well-suited for a wide range of applications in the industrial, automotive, and consumer electronics sectors. This 8-bit microcontroller is part of Microchip's extensive PIC16F family, known for their ease of use and robust performance.

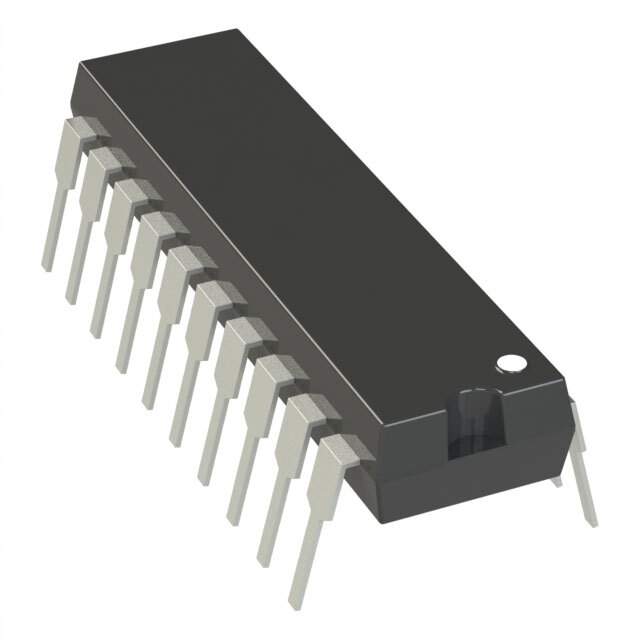

Encased in a 20-pin PDIP (Plastic Dual In-line Package), the PIC16F1509-I/P is designed for through-hole mounting, making it ideal for prototyping and educational purposes. It operates at a voltage range of 2.0V to 5.5V, providing flexibility in various power supply scenarios and ensuring compatibility with both TTL and CMOS logic levels.

At the heart of the PIC16F1509-I/P is a high-performance RISC CPU with a rich set of features including:

• 7 KB of Flash program memory, allowing for robust program storage.
• 512 bytes of RAM, providing sufficient space for data manipulation and storage.
• 256 bytes of EEPROM, which is useful for storing non-volatile data that must be preserved between resets or power cycles.
• Integrated peripherals such as an Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART), I2C, SPI, and a 10-bit Analog-to-Digital Converter (ADC) with up to 17 channels, enabling the microcontroller to interface with a variety of sensors and devices.
• Two Capture, Compare, PWM (CCP) modules, which are essential for generating precise timing sequences, measuring time intervals, and creating PWM signals for motor control and LED dimming applications.

With its integrated 32 MHz internal oscillator, the PIC16F1509-I/P eliminates the need for an external clock source, which simplifies design and reduces component count. Furthermore, this microcontroller features Power-Saving Sleep mode, Watchdog Timer, and Brown-Out Reset, ensuring reliable operation under adverse conditions.

Programming and debugging the PIC16F1509-I/P is facilitated by the in-circuit serial programming (ICSP) and in-circuit debug (ICD) via two pins, making development a breeze with Microchip's MPLAB IDE and a range of compatible programmers and debuggers.

In summary, the PIC16F1509-I/P is a feature-rich and reliable microcontroller that offers a cost-effective solution for a wide variety of applications, making it a popular choice among engineers and hobbyists alike.
