Microchip Technology APTGL240TL120G Overview

The APTGL240TL120G is a high-performance power transistor from Microchip Technology, designed to meet the demanding requirements of modern power electronic applications. This device is part of Microchip's extensive lineup of power management solutions, and it's engineered to deliver efficient, reliable performance for a wide range of uses.

With an emphasis on durability and thermal management, the APTGL240TL120G is a field-proven power transistor that offers a maximum collector-emitter voltage of 1200V, which ensures safe operation under high voltage conditions. Its continuous collector current rating of 240A allows for substantial power handling capabilities, making it suitable for high-power applications.

The APTGL240TL120G is built using Microchip's advanced IGBT (Insulated Gate Bipolar Transistor) technology, which combines the simple gate-drive characteristics of MOSFETs with the high-current and low-saturation-voltage capability of bipolar transistors. This hybrid technology enables the APTGL240TL120G to offer exceptional efficiency and fast switching speeds.

The device also features a low on-state voltage drop, which minimizes conduction losses and improves overall system efficiency. This, coupled with its fast switching capabilities, reduces switching losses when operating at high frequencies. The result is a product that not only boosts performance but also conserves energy, making it an environmentally friendly option for power systems.

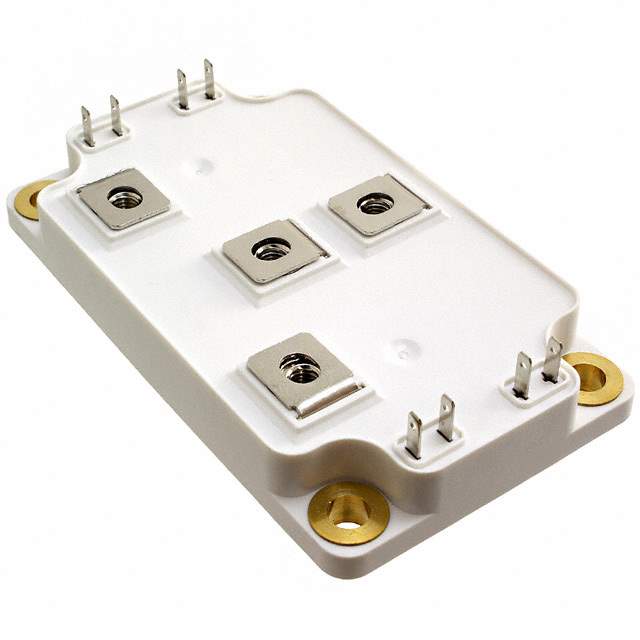

The APTGL240TL120G is housed in a rugged package designed to withstand harsh environments and to provide excellent heat dissipation. This ensures a long operational life and stable performance even under extreme conditions. The package is also optimized for easy mounting and integration into various circuit designs.

Ideal for applications such as motor drives, power inverters, and converters, the APTGL240TL120G is a testament to Microchip's commitment to providing innovative, reliable, and high-quality power management solutions. Whether you're designing for industrial, automotive, or renewable energy sectors, this power transistor is engineered to help you achieve maximum efficiency and performance in your electronic designs.
