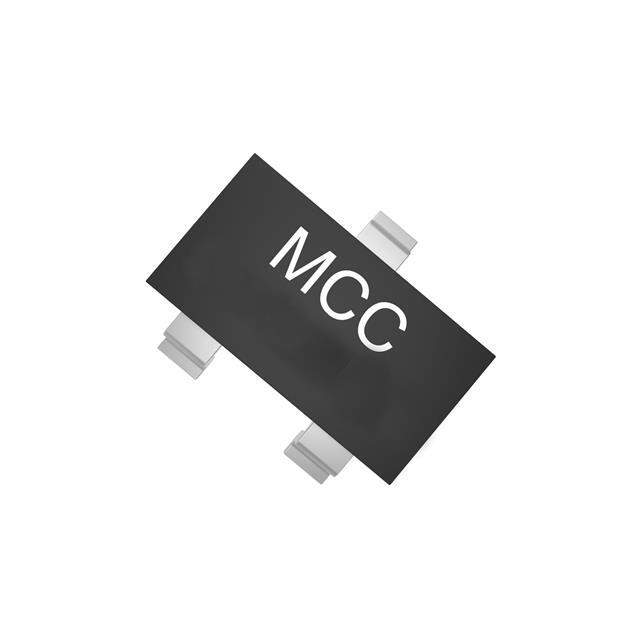

BAS70-04-TP Real Image
Same model may have multiple batches, images only for reference.

BAS70-04-TP

Part No BAS70-04-TP
Manufacturer Micro Commercial Co
Catalog Diodes, Rectifiers - Arrays
Datasheet
BAS70-04-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Micro Commercial Co
Package Tape & Reel
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 70 V
Current - Average Rectified (Io) (per Diode) 70mA (DC)
Voltage - Forward (Vf) (Max) @ If 1 V @ 15 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 200 nA @ 50 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting SMD (SMT)
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Base Product Number BAS70
Other Names BAS70-04TPMSDKR,BAS7004TP,Q6698258,BAS70-04TPMSTR,BAS70-04TPMSCT
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1283024-BAS70-04-TP
Ultra Librarian 3D Model Ultra Librarian BAS70-04-TP CAD Model

Description

The BAS70-04-TPMSDKR is a Schottky diode from Micro Commercial Co.

  • Voltage - DC Reverse (Vr) (Max): 70 V
  • Voltage - Forward (Vf) (Max) @ If: 1 V @ 15 mA
  • Reverse Recovery Time (trr): 5 ns
  • Current - Reverse Leakage @ Vr: 200 nA @ 50 V
  • Diode Configuration: 1 pair series connection
  • Average Rectified Current (Io) (per diode): 70mA (DC)
  • Package/Case: TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package: SOT-23
  • Operating Temperature Range: -55°C to 150°C (TJ)
