The SY89850UMG is a precision, high-speed 2.5V/3.3V Any-Level-to-LVDS translator manufactured by Micrel, now Microchip Technology. This translator is designed to convert single-ended or differential clock/data signals to LVDS (Low Voltage Differential Signaling) levels. It's commonly used in high-speed data communication systems, backplanes, and clock distribution networks.

Applications:

• Clock Distribution Networks
• Backplane Data Transmission
• High-Speed Data Communication Systems
• Signal Level Translation
• FPGA/ASIC Interfacing

Features:

• Any-Level Input: Accepts single-ended or differential inputs with voltage levels ranging from 1.2V to 3.3V.
• LVDS Output: Provides LVDS compatible differential output signals.
• High Speed: Supports data rates up to several hundred MHz (check datasheet for specific speed).
• Low Jitter: Designed for minimal added jitter in clock distribution applications.
• Small Footprint: Available in a compact package for space-constrained applications.

Benefits:

• Flexible Input: The "Any-Level" input allows the device to interface with a wide range of signal levels, simplifying system design.
• High-Speed Data Transmission: LVDS outputs enable high-speed data transmission over longer distances with reduced noise and EMI.
• Improved Signal Integrity: The differential signaling of LVDS improves signal integrity and reduces susceptibility to noise.
• Reduced Power Consumption: LVDS offers lower power consumption compared to single-ended signaling at high speeds.
• Simplified System Design: This translator simplifies the interface between different voltage domains in a system.

Additional Details:

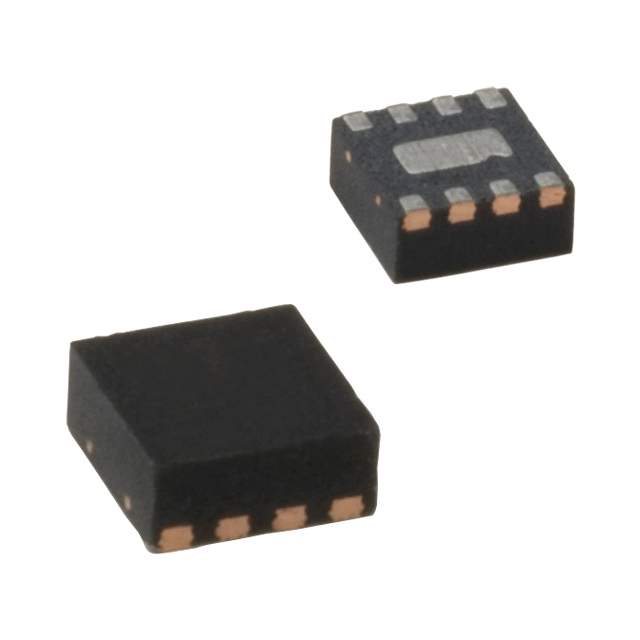

The SY89850UMG is typically packaged in a QFN or similar small surface mount package. The input impedance is usually high, allowing for minimal loading of the input signal source. The LVDS output swing is typically around 350mV. The device operates from a single 2.5V or 3.3V power supply. It's essential to consult the manufacturer's datasheet for detailed specifications, including input voltage range, output voltage swing, propagation delay, and jitter performance. Proper termination of the LVDS outputs is crucial for minimizing reflections and ensuring signal integrity. The device may include internal termination resistors, or external termination resistors may be required depending on the application and trace length. The SY89850UMG is designed to meet the stringent requirements of high-speed data communication systems, providing a reliable and efficient solution for signal level translation and clock distribution. Its low jitter performance makes it suitable for clocking sensitive devices such as FPGAs and ASICs. Careful layout techniques are important to minimize noise and ensure optimal performance.
