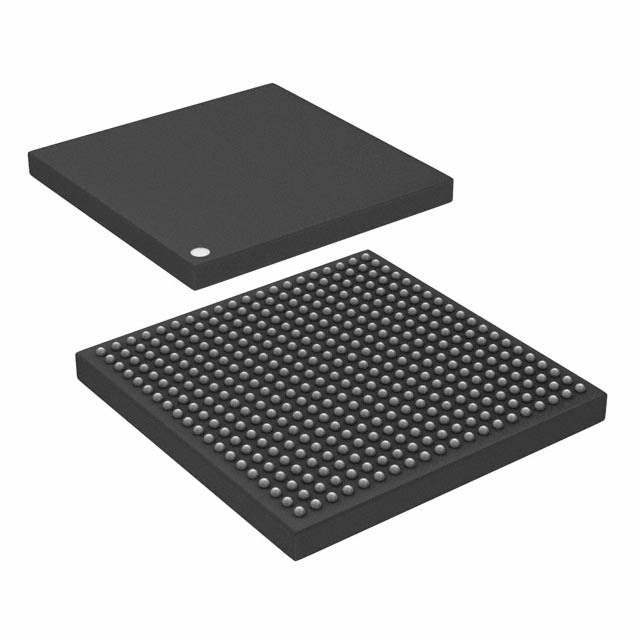

Same model may have multiple batches, images only for reference.
M2S010-VFG400I Microchip Technology
Same model may have multiple batches, images only for reference.

M2S010-VFG400I

Part No M2S010-VFG400I
Manufacturer Microchip Technology
Catalog Embedded - System On Chip (SoC)
Description IC SOC CORTEX-M3 166MHZ 400VFBGA
Datasheet
M2S010-VFG400I Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308839-M2S010-VFG400I
Category Integrated Circuits (ICs) >Embedded >System On Chip (SoC)
Manufacturer Microchip Technology
Packaging  Tray
Part Status Active
Architecture MCU, FPGA
Core Processor ARM® Cortex®-M3
Flash Size 256KB
RAM Size 64KB
Peripherals DDR, PCIe, SERDES
Connectivity CANbus, Ethernet, I2C, SPI, UART/USART, USB
Ultra Librarian 3D Model Ultra Librarian M2S010-VFG400I CAD Model

Description

This datasheet covers the electrical AC and DC specifications for five temperature grades of devices (part number prefixes M2GL005, M2GL010, M2GL025, M2GL050, M2GL060, M2GL090, M2GL150) and four temperature grades of devices (part number prefixes M2S005, M2S010, M2S025, M2S050, M2S060, M2S090 and M2S150). AC and DC electrical characteristics and parametric values, unless otherwise noted, apply to all the temperature grade devices. Users are expected to close timing using SmartTime for the speed and temperate grade of the device chosen.
