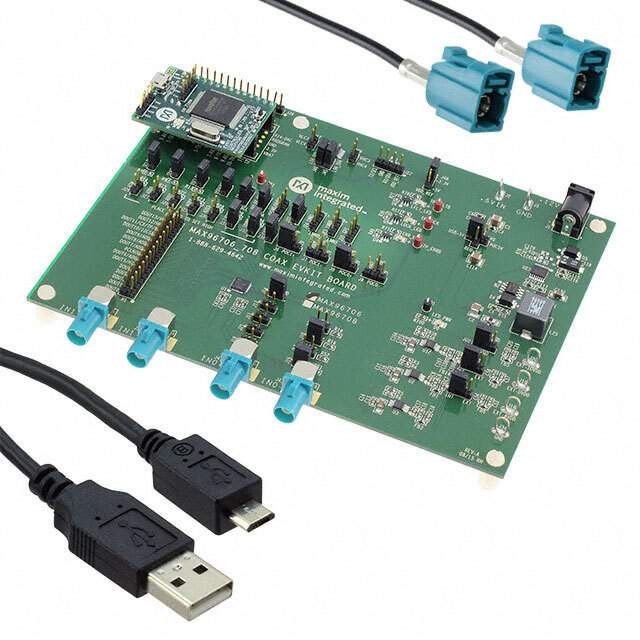

Maxim Integrated MAX96708COAXEVKIT# Evaluation Kit

The MAX96708COAXEVKIT# from Maxim Integrated is a comprehensive evaluation kit designed to facilitate the testing and development of automotive camera applications using the MAX96708 high-speed gigabit multimedia serial link (GMSL) serializer. This advanced evaluation kit serves as a critical tool for automotive system designers and engineers, providing a robust platform for exploring the capabilities and performance of the MAX96708 in a variety of scenarios.

At the heart of the kit is the MAX96708 serializer, which is capable of serializing 14-bit image data and delivering it over a single coaxial or twisted-pair cable. The serializer supports up to 1.5 Gbps data rates, making it suitable for high-resolution and high-frame-rate video applications. With the inclusion of spread spectrum capability, the MAX96708 reduces electromagnetic interference (EMI), a crucial feature for automotive environments.

The evaluation kit comes with a user-friendly graphical user interface (GUI) that allows for easy manipulation of the MAX96708's registers and settings. This GUI aids in the rapid prototyping and testing of various configurations, streamlining the development process. The MAX96708COAXEVKIT# also features a convenient USB interface for connection to a PC, enabling direct communication with the evaluation software.

In addition to the serializer, the kit includes a companion deserializer board for a complete end-to-end system evaluation. This setup mirrors real-world automotive camera systems, where a serializer at the camera end interfaces with a deserializer at the host processor end. The evaluation boards are pre-configured to demonstrate typical automotive camera applications, but they also offer the flexibility to be adapted to custom setups and requirements.

The MAX96708COAXEVKIT# is not just a tool for evaluating the MAX96708, but a versatile platform that empowers designers to push the boundaries of automotive camera technology. With its high-speed data transmission, EMI mitigation features, and user-friendly interface, the MAX96708COAXEVKIT# is an essential asset for any automotive video system development.
