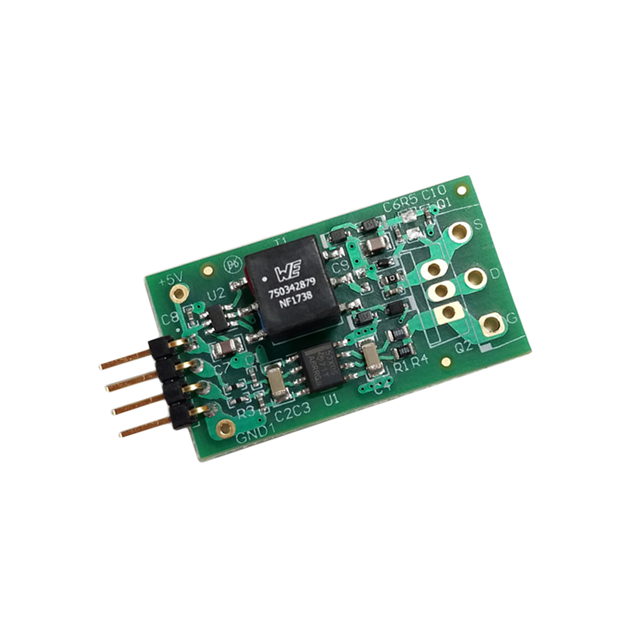

The UCC5390SCDEVM-010 from Texas Instruments is a robust evaluation module designed for engineers and developers to assess the capabilities and features of the UCC5390 isolated single-channel gate driver. This evaluation module is specifically tailored for applications that require high-efficiency, reliability, and performance in high-voltage systems.

Featuring a wide input VDD range of 14.5V to 30V, the UCC5390SCDEVM-010 is versatile and can be used in various applications including motor control, industrial drives, and power supplies. The device is capable of providing high peak output current, making it suitable for driving power MOSFETs and IGBTs with ease.

This evaluation module comes equipped with reinforced isolation, which is critical for safety and functionality in high-voltage applications. It ensures that the control side of the circuit is completely isolated from the high-voltage power side, thus protecting the system and the user from potential electrical hazards.

The UCC5390SCDEVM-010 also boasts a range of protection features such as UVLO (Under-Voltage Lock-Out) for both VDD and VEE, which ensures that the gate driver operates only when the supply voltage is within an acceptable range. Additionally, the evaluation module includes DESAT (Desaturation Detection) protection to prevent damage from overcurrent conditions.

For ease of testing and development, the UCC5390SCDEVM-010 includes convenient probe points and jumper options that allow for flexible configurations and quick setup. This enables developers to rapidly prototype and test their designs, reducing time to market.

Overall, the UCC5390SCDEVM-010 evaluation module is an essential tool for engineers looking to explore the functionalities of the UCC5390 gate driver and develop high-voltage applications with confidence in the performance and safety of their designs.
