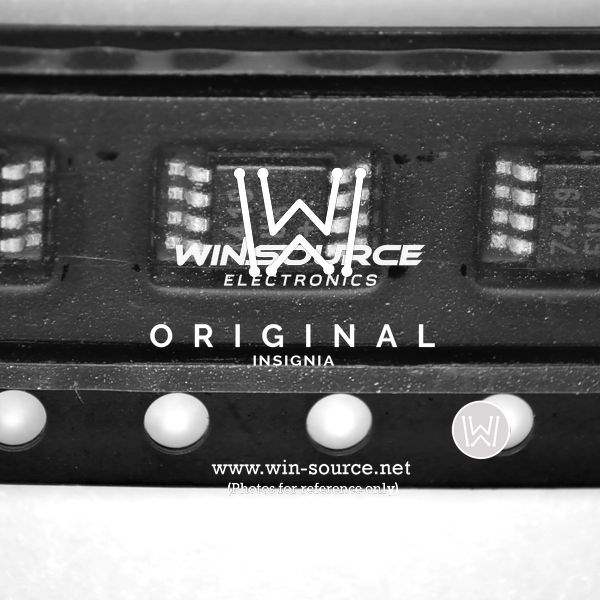

Maxim Integrated MAX7419EUA+T Product Overview

The MAX7419EUA+T is a high-performance, 5th-order, lowpass, elliptic, switched-capacitor filter that significantly reduces the component count in filter design. Manufactured by Maxim Integrated, a leader in analog and mixed-signal engineering, this filter is specifically designed to provide sharp cutoff characteristics with low noise, making it an ideal choice for a wide range of applications in signal processing.

This compact filter comes in a space-saving 8-pin µMAX package, which is highly suitable for portable and space-constrained applications. The MAX7419EUA+T operates from a single +5V supply, which contributes to its energy-efficient design, and it features a user-selectable clock-tunable cutoff frequency. This allows for a flexible design that can be easily adjusted to meet the requirements of various applications.

The MAX7419EUA+T filter provides excellent selectivity and low distortion, which is crucial for maintaining signal integrity in applications such as anti-aliasing for data acquisition systems, audio signal processing, and other applications that require precise filtering. Its lowpass response preserves the desired signal while effectively attenuating unwanted noise and high-frequency interference.

Key features of the MAX7419EUA+T include:

• 5th-Order Lowpass Elliptic Response
• Single +5V Supply Operation
• User-Selectable Frequency Cutoff via External Clock
• Low Noise and Distortion
• Space-Saving 8-Pin µMAX Package
• High Component Integration for Reduced System Size

The MAX7419EUA+T also offers a shutdown feature that reduces the power consumption when the filter is not in active use, making it suitable for battery-powered devices. Its robust design ensures reliable performance across a wide temperature range, making it a versatile choice for both industrial and consumer applications.

Whether you're designing a sophisticated audio system or looking for a reliable filter for your data acquisition project, the MAX7419EUA+T from Maxim Integrated provides the performance and flexibility you need to achieve high-quality signal processing in a compact and efficient form factor.
