MAX7219EWG+ LED Display Driver

The MAX7219EWG+ is a compact, serial input/output common-cathode display driver that can interface microprocessors to 7-segment numeric LED displays of up to 8 digits, bar-graph displays, or 64 individual LEDs. Manufactured by Maxim Integrated, this integrated circuit is designed to simplify the process of interfacing with LED displays by reducing the need for extensive I/O lines from the microprocessor.

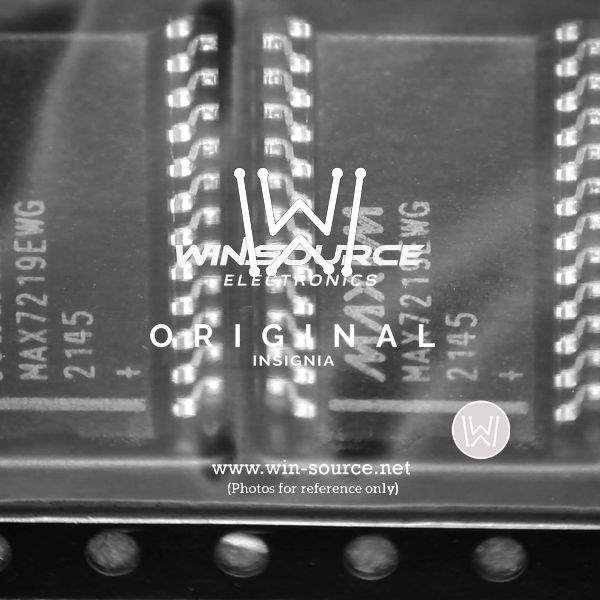

Featuring a 24-pin wide-body SO package, the MAX7219EWG+ includes a built-in BCD code-B decoder, multiplex scan circuitry, segment and digit drivers, and an 8x8 static RAM that stores each digit. Users can address each digit/segment individually, allowing for complete control over the display. The device operates from a 4.0V to 5.5V power supply, making it suitable for a wide range of applications.

One of the key benefits of the MAX7219EWG+ is its capability to control multiple displays without requiring a significant increase in microprocessor I/O lines, thanks to its daisy-chainable serial interface. This feature is particularly valuable in applications where PCB space is limited and a high number of display elements are required. The device also offers a convenient shutdown mode, reducing the power consumption when the display is not in use.

The MAX7219EWG+ supports a digital intensity control, allowing the brightness of the LEDs to be adjusted through software. This is especially useful in applications where the ambient light conditions vary or power consumption needs to be minimized. Its scan-limit register enables the user to display from 1 to 8 digits, providing flexibility in the display design.

Overall, the MAX7219EWG+ from Maxim Integrated is a versatile and reliable solution for driving LED displays in applications such as panel meters, digital clocks, and other devices requiring numeric or graphical readouts. Its ease of use and functionality make it an excellent choice for designers looking to enhance the user interface of their systems.
