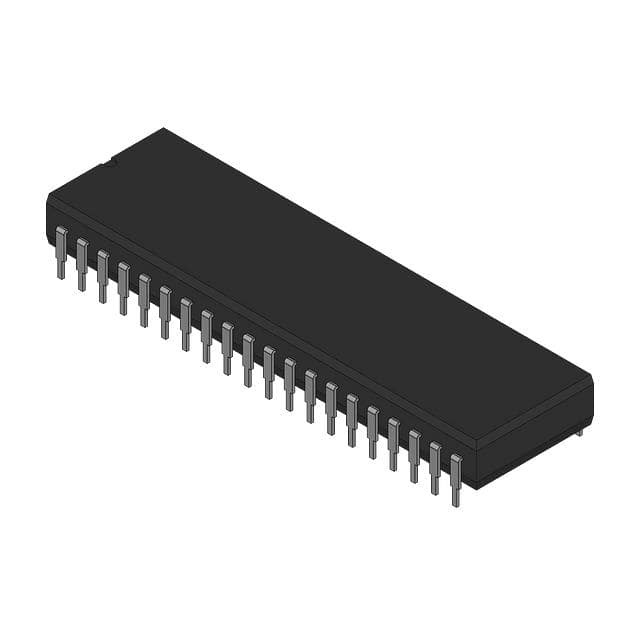

The MAX6952EPL from Maxim Integrated is a compact, serially interfaced display driver designed to control a 4-digit, 5x7 matrix LED display. This versatile device is ideal for applications that require dynamic visual feedback, such as industrial control panels, instrumentation displays, and message boards.

Key Features

• Integrated Multiplexing: The MAX6952EPL incorporates an on-chip multiplex scan circuitry, which allows it to directly drive each LED, thus reducing the number of required I/O pins and simplifying the design.
• Serial Interface: This device supports SPI, QSPI, and MICROWIRE serial interfaces, making it easily programmable and compatible with a wide range of microcontrollers.
• Individual LED Control: Users have the ability to control each LED individually, offering flexibility for creating custom characters and animations.
• Brightness Control: It features 16-step digital brightness control to adjust the intensity of the display according to the ambient light conditions or user preference.
• Low Power Consumption: Designed with power efficiency in mind, the MAX6952EPL operates with a 5V supply voltage and has a low shutdown current, making it suitable for battery-powered applications.
• Extended Temperature Range: With an operating temperature range of -40°C to +85°C, the device is reliable in various environmental conditions.

Applications

The MAX6952EPL is versatile enough to be used in a range of applications, including:

• Portable Instruments
• Point-of-Sale Terminals
• Vending Machine Displays
• Panel Meters
• Message Boards

With its robust feature set and ease of integration, the MAX6952EPL is an excellent choice for developers looking to add a high-quality LED display to their electronic projects. Its ability to drive multiple LEDs with precise control and minimal external components makes it a highly efficient solution for a variety of display applications.
