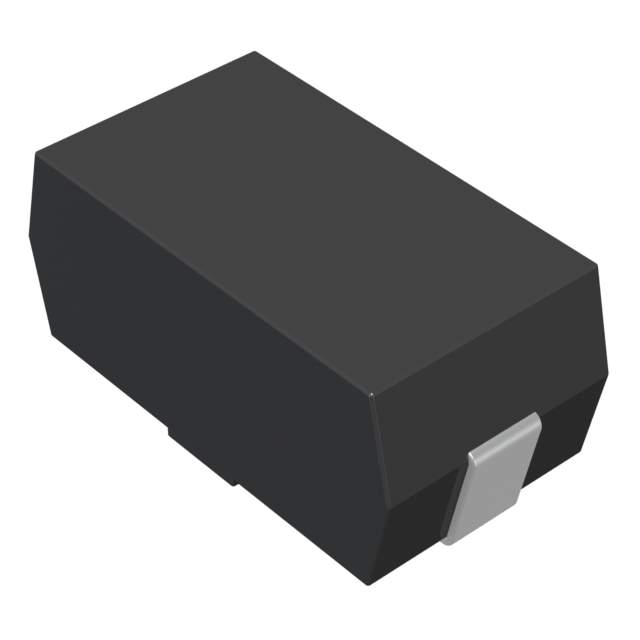

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series SP, CGS
Package Tape & Reel (TR)
Resistance 68 Ohms
Tolerance ±1%
Power (Watts) 2.5W
Composition Wirewound
Features Current Sense, Moisture Resistant
Temperature Coefficient ±30ppm/°C
Package / Case 4823 J-Lead
Supplier Device Package SMD
Dimension 0.478" L x 0.230" W (12.14mm x 5.84mm)
Height - Seated (Max) 0.210" (5.33mm)
Number of Terminations 2
Base Product Number SP2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Other Names 1624309-1-ND,1624309-1
Standard Package 500
Win Source Part Number 1154961-SP268RFT
Ultra Librarian 3D Model Ultra Librarian SP268RFT CAD Model

Description

The TE Connectivity Passive Product SP2 is a wirewound chip resistor that belongs to the SP, CGS series.

  • Manufacturer: TE Connectivity Passive Product
  • Series: SP, CGS series
  • Type: Wirewound chip resistor
  • Mounting: Surface-mount device
  • Features: Current sense and moisture resistant
  • Power Output: 2.5W
  • Resistance: 68 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±30ppm/°C
  • Package/Case: 4823 J-Lead
  • Height: 0.210" (5.33mm)
  • Standard Package: 500
  • REACH: Unaffected
  • ECCN: EAR99
  • Description: An excellent choice for a chip resistor in surface-mount technology.
