Maxim Integrated MAX6675ISA Thermocouple-to-Digital Converter

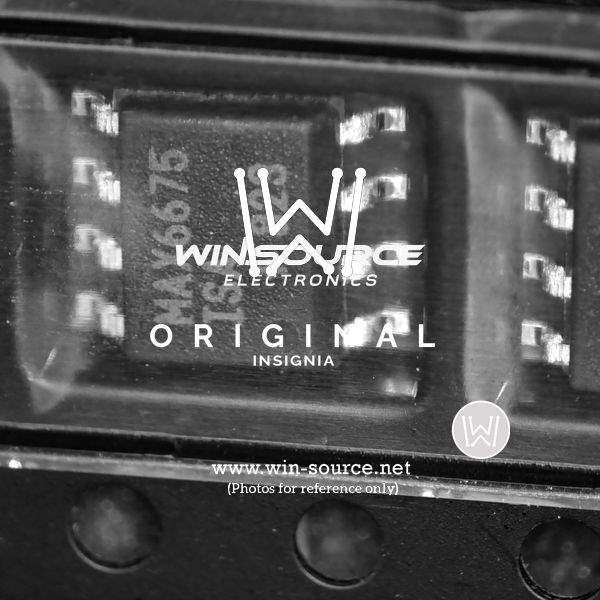

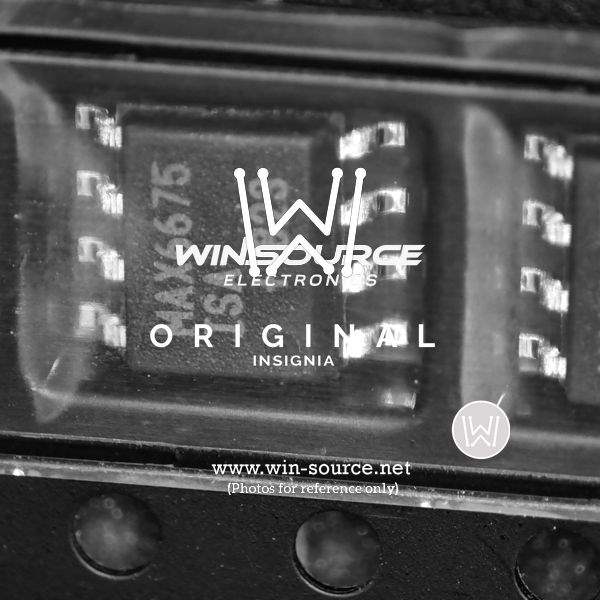

The MAX6675ISA from Maxim Integrated is a sophisticated thermocouple-to-digital converter encapsulated in a compact 8-pin SOIC package. It is designed to be a comprehensive solution for temperature measurement applications requiring a direct digital interface to a microcontroller. The MAX6675ISA simplifies the process of converting a thermocouple's small voltage to a digital value with its built-in cold junction compensation and analog-to-digital converter (ADC).

This device is capable of reading temperatures from -270°C to +1800°C, with the actual usable temperature range dependent on the type of thermocouple used. It is specifically optimized for use with K-type thermocouples, providing a 12-bit resolution and a default temperature resolution of 0.25°C. The MAX6675ISA operates on a supply voltage of 3.0V to 5.5V, making it versatile for various systems and applications.

One of the key features of the MAX6675ISA is its simplicity of use, requiring minimal external components. The device communicates with microcontrollers via a standard SPI-compatible serial interface, which allows for easy integration into existing designs. The MAX6675ISA also includes a built-in detection for open thermocouple conditions, enhancing the reliability of the temperature readings.

The MAX6675ISA is ideal for a wide range of applications, including industrial controls, consumer products, HVAC systems, and thermal monitoring systems. Its robust design ensures accurate and reliable temperature measurements even in harsh industrial environments.

Furthermore, Maxim Integrated provides comprehensive support for the MAX6675ISA, including detailed datasheets, application notes, and reference designs. This support helps designers to quickly implement the device into their applications and reduce time-to-market for their products.

Overall, the MAX6675ISA is a high-performance, easy-to-use solution for anyone looking to integrate temperature sensing into their design with minimal hassle and maximum accuracy.
