Product Overview: MAX3087EESA+T by Maxim Integrated

The MAX3087EESA+T is a high-performance, low-power, RS-485/RS-422 transceiver designed by Maxim Integrated to facilitate robust communication in harsh industrial environments. This device is particularly well-suited for long-distance and high-speed applications where reliable data transmission is critical.

Key Features

• High-Speed Operation: Capable of data rates up to 15Mbps, the MAX3087EESA+T is ideal for high-speed data communication applications.
• Extended Temperature Range: With an operating temperature range of -40°C to +85°C, it is designed to perform reliably in extreme environments, making it suitable for industrial applications.
• Reduced Power Consumption: The device features a low quiescent current, which helps in reducing power consumption, making it an energy-efficient choice for battery-powered systems.
• Fail-Safe Feature: It includes a fail-safe feature that ensures a logic-high receiver output when the inputs are open or shorted, or when they are connected to a terminated transmission line without any driving signal.
• Enhanced ESD Protection: The transceiver is equipped with enhanced Electrostatic Discharge (ESD) protection up to ±15kV, safeguarding the device against unexpected surges.
• Half-Duplex Communication: It supports half-duplex communication, allowing bidirectional communication over a single pair of wires, which helps in reducing the complexity and cost of the cabling.
• Integrated Protection: The device features thermal shutdown and current-limiting protection mechanisms to enhance its durability and longevity.

Applications

The MAX3087EESA+T is versatile and can be used in various applications, including:

• Industrial Control Systems
• Building Automation
• Networked Security Systems
• Factory Automation
• Data Acquisition Systems

Package and Availability

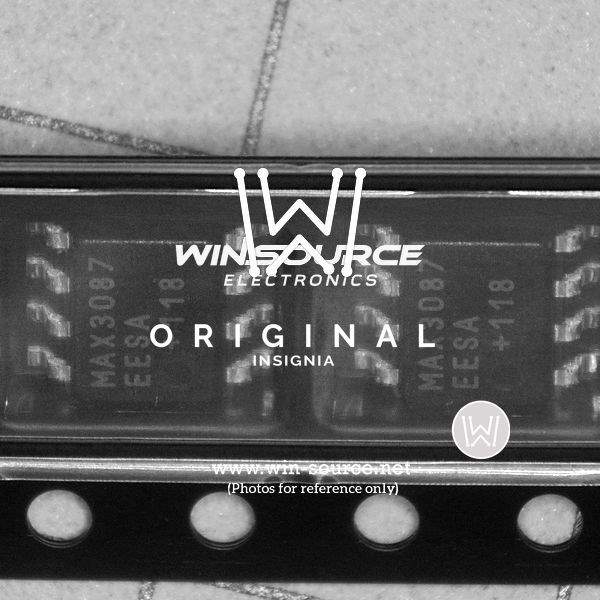

The MAX3087EESA+T comes in a compact 8-pin SOIC package, which is conducive for space-constrained applications. The device is available in tape and reel format, denoted by the '+T' suffix, facilitating its use in automated manufacturing processes.

With its robust feature set and reliable performance, the MAX3087EESA+T from Maxim Integrated stands out as a superior choice for designers looking to implement RS-485/RS-422 communication in their systems.
