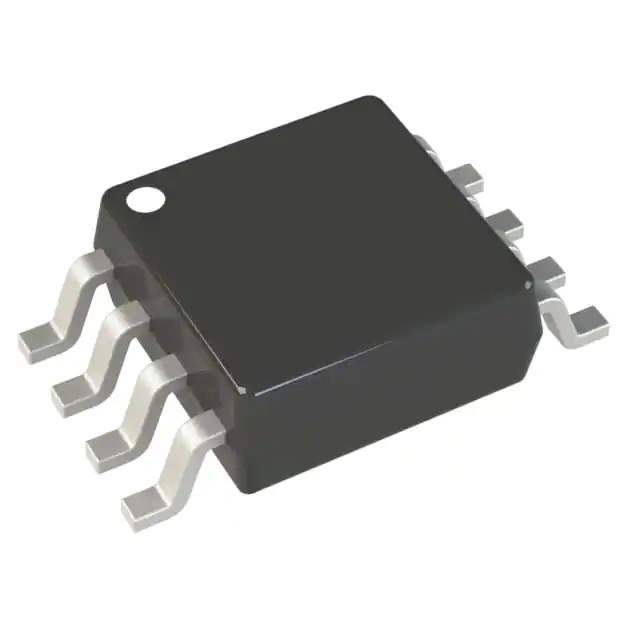

MX25U3232FM2I02 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Memory - Memory
Mfr Macronix
Series MXSMIO™
Package Tube
Product Status Active
Programmable Not Verified
Memory Type Non-Volatile
Memory Format FLASH
Technology FLASH - NOR
Memory Size 32Mbit
Memory Organization 4M x 8
Memory Interface SPI - Quad I/O, QPI
Clock Frequency 133 MHz
Write Cycle Time - Word, Page 40µs, 3ms
Voltage - Supply 1.65V ~ 2V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 8-SOIC (0.209", 5.30mm Width)
Supplier Device Package 8-SOP
Base Product Number MX25U3232
Standard Package 92 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991B1A
HTSUS 8542.32.0071
Win Source Part Number 852087-MX25U3232FM2I02
Ultra Librarian 3D Model Ultra Librarian MX25U3232FM2I02 CAD Model

Description

The MX25U3232FM2I02 is a 32Mbit FLASH - NOR memory IC from Macronix.

  • Series: MXSMIO™
  • Memory Type: Non-Volatile
  • Memory Size: 32Mbit
  • Voltage - Supply: 1.65V ~ 2V
  • Clock Frequency: 133 MHz
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC
  • Memory Organization: 4M x 8
  • Memory Interface: SPI - Quad I/O, QPI
