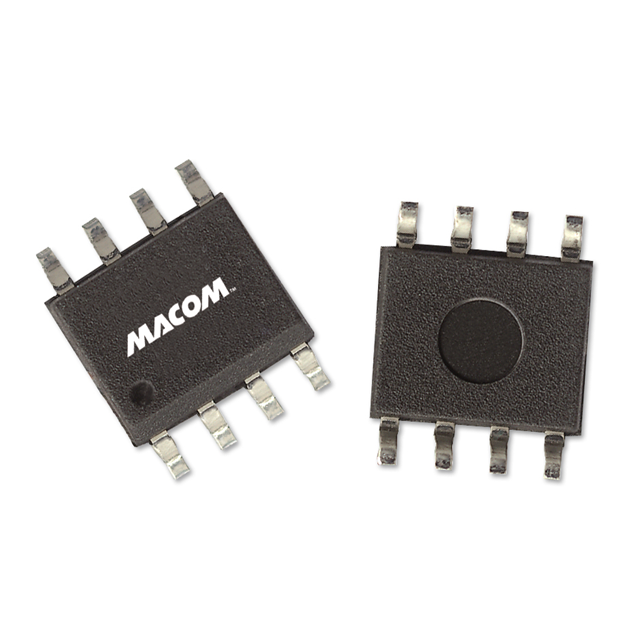

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories RF/IF and RFID
Features RF Power Divider 1.85 GHz ~ 1.99 GHz Isolation (Min) 12dB, 2 VSWR (Max), 14° Imbalance (Max) 8-SOIC (0.154", 3.90mm Width)
Manufacturer M/A-Com Technology Solutions
Package Reel - TR
Package 8-SOIC (0.154", 3.90mm Width)
Family Name MAPDCC0006
MSL Level 1 (Unlimited)
Other Part Number 1465-MAPDCC0006DKR, 1465-MAPDCC0006TR, 1465-MAPDCC0006CT
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 925151-MAPDCC0006TR
Ultra Librarian 3D Model Ultra Librarian MAPDCC0006TR CAD Model

Description

The M/A-Com Technology Solutions RF Power Divider is a high-quality electronic component designed for RF/IF and RFID applications.

  • Frequency Range: 1.85 GHz ~ 1.99 GHz
  • Isolation (minimum): 12dB
  • Maximum VSWR: 2
  • Maximum Imbalance: 14 degrees
  • Package: 8-SOIC
  • Width: 0.154 inches
  • Height: 3.90mm
  • Part of Family: MAPDCC0006
  • Package: Reel - TR
  • Quantity per Package: 1000
  • MSL Level: 1 (Unlimited)
