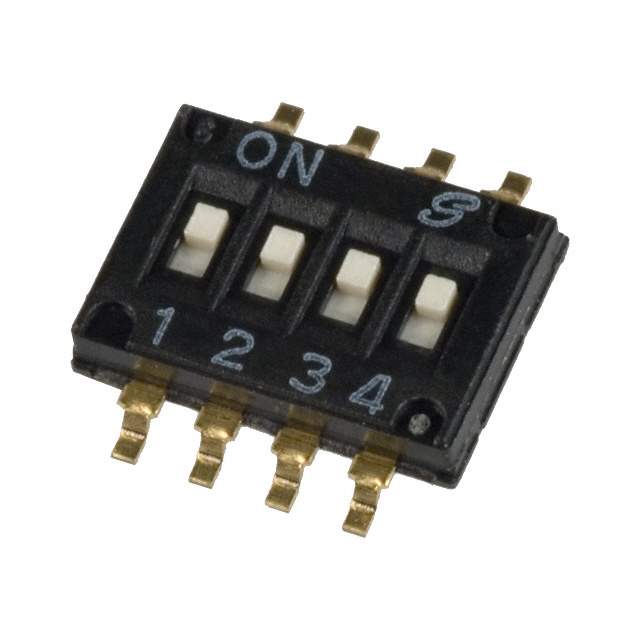

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Grayhill Inc.
Series 97
Package Tape & Reel
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.063" (1.60mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyamide (PA), Nylon
Length 0.248" (6.31mm)
Mechanical Life 1,000 Cycles
Base Product Number 97C04
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names GH7644CT,2266-97C04SRT,97C04SRT-ND,Q4484825,97C04SRT-NDL,GH7644DKR,GH7644TR
Standard Package 4,000
Win Source Part Number 1004298-97C04SRT
Ultra Librarian 3D Model Ultra Librarian 97C04SRT CAD Model

Description

The Grayhill Inc. 97 series SPST Slide DIP switch is a surface mount switch with gull-wing terminations. It has a contact finish of gold and a contact material of copper alloy.

  • Product Name: 97 series SPST Slide DIP switch
  • Manufacturer: Grayhill Inc.
  • Type: Surface mount switch
  • Termination: Gull-wing
  • Contact Finish: Gold
  • Contact Material: Copper alloy
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Mechanical Life: 1,000 cycles
  • Actuator Level: Flush, recessed
  • Application: DIP switch applications
