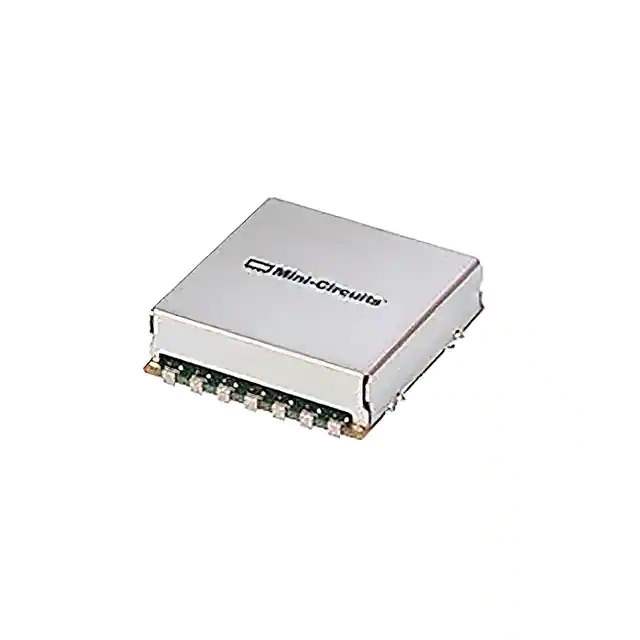

JCPS-8-10+ Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Power Dividers/Splitters
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Insertion Loss 1.8dB
Frequency 5 MHz ~ 1 GHz
Specifications Isolation (Min) 20dB, 15° Imbalance (Max)
Package / Case 14-SMD Module
Standard Package 200 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 710585-JCPS-8-10+
Ultra Librarian 3D Model Ultra Librarian JCPS-8-10+ CAD Model

Description

The 710585-JCPS-8-10+ is an RF power divider/splitter designed for applications in the frequency range of 5 MHz to 1 GHz. The Mini-Circuits is the manufacturer.

  • Isolation: 20dB (minimum)
  • Imbalance: 15° (maximum)
  • Insertion Loss: 1.8dB
  • Package: 14-SMD module
  • Mounting: Surface Mount
  • Status: Active
