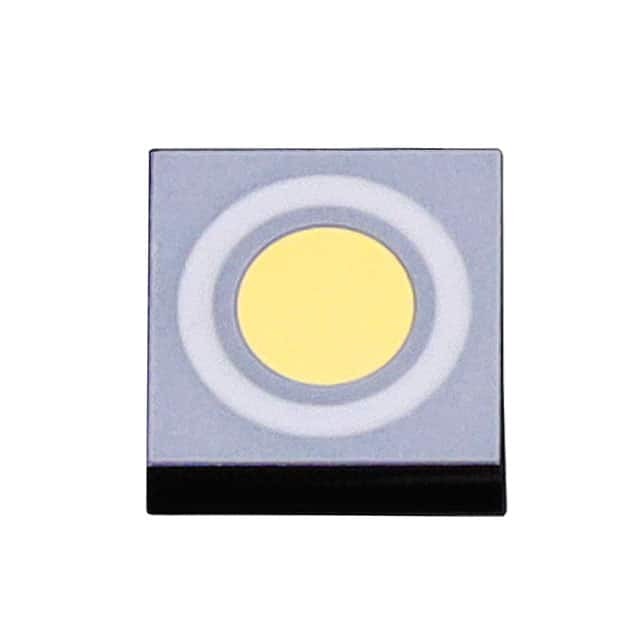

Same model may have multiple batches, images only for reference.
MA4PK3000-1252
Same model may have multiple batches, images only for reference.

MA4PK3000-1252

Part No MA4PK3000-1252
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description DIODE,PIN,CHIP,CERAMIC,SI,ODS-12
Datasheet
MA4PK3000-1252 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr M/A-Com Technology Solutions
Series KILOVOLT™
Package Tray
Product Status Active
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 3000V
Current - Max 17 A
Capacitance @ Vr, F 2.5pF @ 100V, 1MHz
Resistance @ If, F 250mOhm @ 500mA, 4MHz
Power Dissipation (Max) 75 W
Temperature Range - Operating -65°C ~ 175°C
Package / Case Die
Supplier Device Package Chip
Base Product Number MA4PK
Standard Package 25 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 880896-MA4PK3000-1252
Ultra Librarian 3D Model Ultra Librarian MA4PK3000-1252 CAD Model

Description

The 880896-MA4PK3000-1252 is a high-voltage RF diode from the KILOVOLT™ series.

  • Designed for use in: discrete semiconductor products, specifically in RF diode applications
  • Maximum Current Rating: 17 A
  • Peak Reverse Voltage: 3000V
  • Capacitance: 2.5pF @ 100V and 1MHz
  • Power Dissipation: 75W
  • Resistance: 250mOhm
  • Package: a die package
  • Manufacturer: M/A-Com Technology Solutions
  • Product: active product
