Same model may have multiple batches, images only for reference.

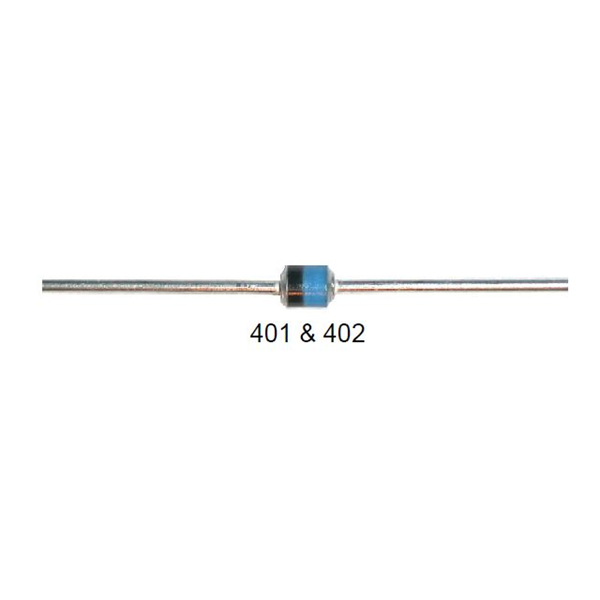

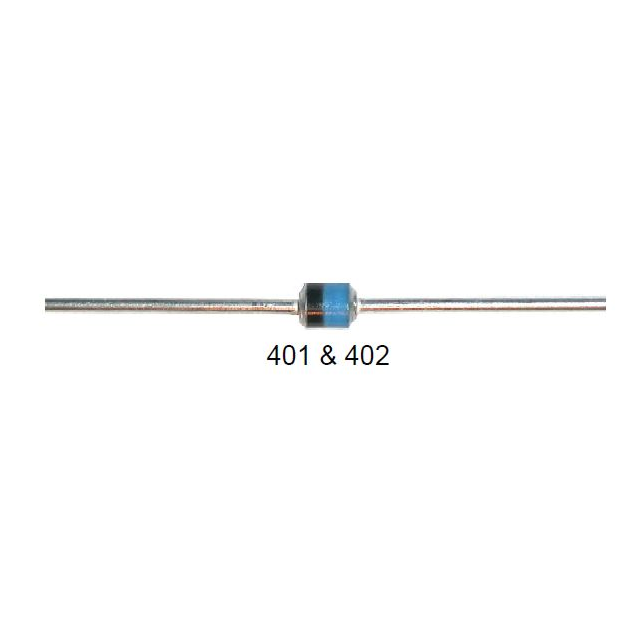

MA4P4301B-402 Real Image
Same model may have multiple batches, images only for reference.

MA4P4301B-402

Part No MA4P4301B-402
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description DIODE,PIN,CERAMIC,AXIAL,HI-PAX / RF Diode PIN - Single 100V 10 W Axial
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr MACOM Technology Solutions
Series MA4P
Package Tray
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 100V
Capacitance @ Vr, F 2pF @ 100V, 1MHz
Resistance @ If, F 1Ohm @ 100mA, 100MHz
Power Dissipation (Max) 10 W
Temperature Range - Operating -55°C ~ 175°C (TJ)
Package / Case Axial
Supplier Device Package Axial
Base Product Number MA4P4301
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0060
Other Names 1465-MA4P4301B-402
Standard Package 100
Win Source Part Number 1170017-MA4P4301B-402
Ultra Librarian 3D Model Ultra Librarian MA4P4301B-402 CAD Model

Description

The MA4P4301B-402 is a PIN-Single diode type electronic component manufactured by MACOM Technology Solutions.

  • Diode Type: PIN-Single
  • Package: Axial
  • Capacitance: 2pF @ 100V, 1MHz
  • Peak Reverse Voltage: 100V
