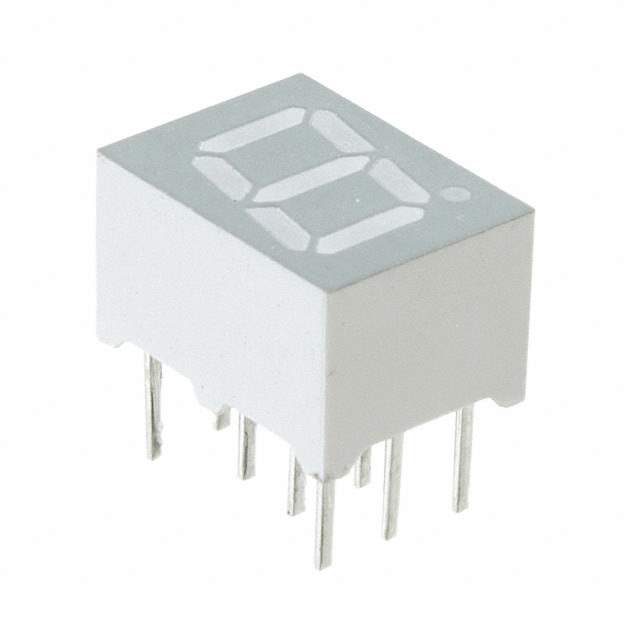

LTS-2301AP Real Image
Same model may have multiple batches, images only for reference.

LTS-2301AP

Part No LTS-2301AP
Manufacturer Lite-On Inc.
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.28" SGL RED 10DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 2.1V 20mA 0.394" H x 0.291" W x 0.240" D (10.00mm x 7.40mm x 6.10mm) 10-DIP (0.300", 7.62mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Lite-On Inc.
Package Tube
Number of Characters 1
Dimension 0.394" H x 0.291" W x 0.240" D (10.00mm x 7.40mm x 6.10mm)
Digit/Alpha Size 0.28" (7.00mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Millicandela Rating 0.75mcd
Wavelength - Peak 697nm
Power Dissipation (Max) 40mW
Package / Case 10-DIP (0.300", 7.62mm)
Base Product Number LTS-2301
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Other Names 160-1990-5,Q717880A,LTS-2301AP-ND,LTS2301AP
Standard Package 50
Win Source Part Number 1072841-LTS-2301AP
Ultra Librarian 3D Model Ultra Librarian LTS-2301AP CAD Model

Description

The LTS-2301AP is a 7-segment LED display module designed for use in electronic devices.

  • Color: Red
  • Package: Tube
  • Standard Package: 50
  • Millicandela Rating: 0.75mcd
  • Forward Voltage: 2.1V
  • Maximum Power Dissipation: 40mW
  • Display Type: 7-segment
  • Number of Characters: 1
  • Digit/Alpha Size: 0.28" (7.00mm)
  • Common Pin: Common cathode
  • Package/Case: 10-DIP (0.300", 7.62mm)
  • Dimension: 0.394" H x 0.291" W x 0.240" D (10.00mm x 7.40mm x 6.10mm)
  • Manufacturer: Lite-On Inc.
  • Alternative Parts: LTS-547AP, LTS-4301P, LTS-367P, SC56-21SRWA, LA-401VN, and LDS-C514RILTS2301AP
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.41.0000
