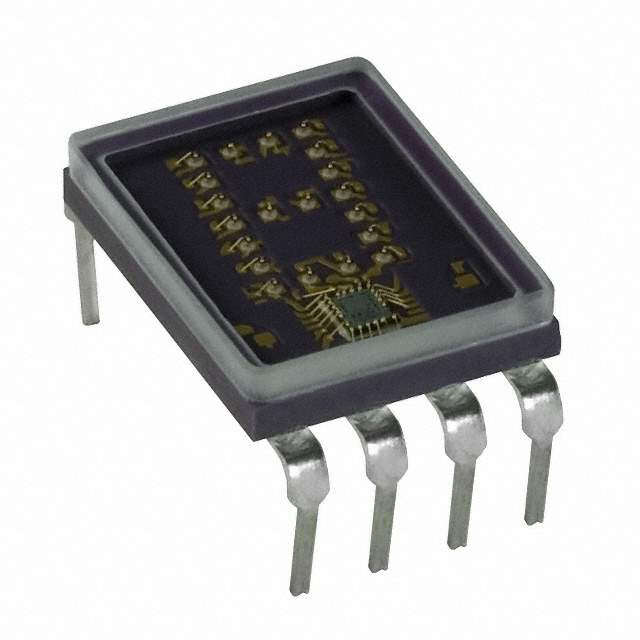

HDSP-0760 Real Image
Same model may have multiple batches, images only for reference.

HDSP-0760

Part No HDSP-0760
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7-SEG 0.29" SGL RED 8DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 10mA 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm) 8-DIP (0.600", 15.20mm)
Datasheet
HDSP-0760 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Broadcom Limited
Series HDSP-076x
Package Tray
Number of Characters 1
Dimension 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm)
Digit/Alpha Size 0.29" (7.37mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Current - Test 10mA
Millicandela Rating 0.06mcd ~ 1.17mcd
Wavelength - Peak 635nm
Power Dissipation (Max) 573mW
Package / Case 8-DIP (0.600", 15.20mm)
Base Product Number HDSP-0760
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.20.0040
Other Names 516-1154-NDR,516-1154,516-1154-5,HDSP0760,516-1154-ND
Standard Package 25
Win Source Part Number 1018834-HDSP-0760
Ultra Librarian 3D Model Ultra Librarian HDSP-0760 CAD Model

Description

The HDSP-0760 is a 7-segment LED display module from the HDSP-076x series by Broadcom Limited. Bold the product name (e.g., BAV99S,135 → BAV99S,135) and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Type: 7-Segment LED Display Module
  • Series: HDSP-076x
  • Color: Red
  • Package: Tray
  • Millicandela Rating: 0.06mcd ~ 1.17mcd
  • Common Anode/Cathode: Common Anode
  • Dimension: 0.531" H x 0.402" W x 0.169" D (13.50mm x 10.20mm x 4.30mm)
  • Display Type: 7-Segment
  • Digit/Alpha Size: 0.29" (7.37mm)
  • Package/Case: 8-DIP (0.600", 15.20mm)
