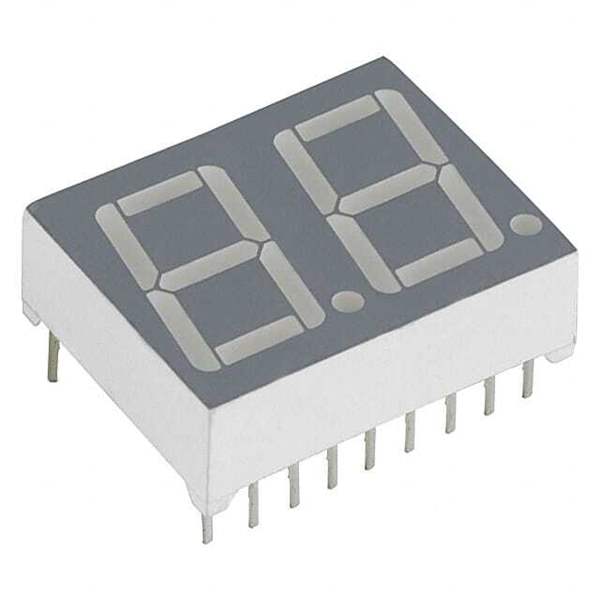

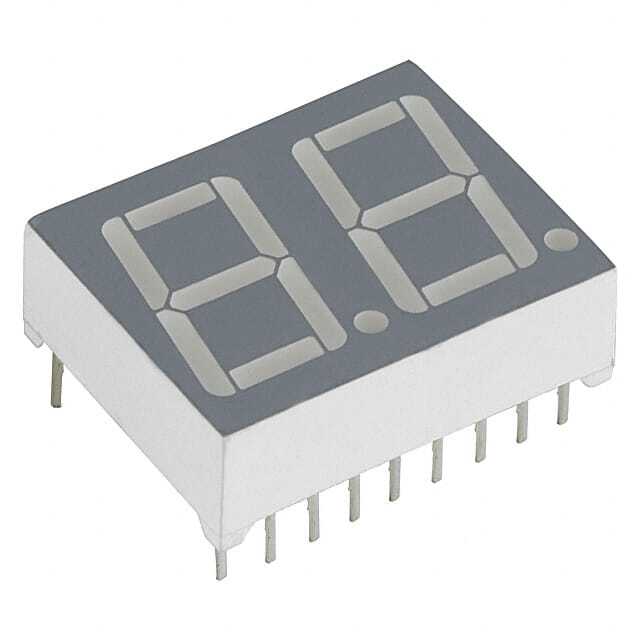

ON Semiconductor MAN6440 Alphanumeric Display

The MAN6440 from ON Semiconductor is a high-quality, easy-to-use alphanumeric display designed for a variety of applications. This innovative component is perfect for those who need to display letters and numbers in a clear and efficient manner. The MAN6440 is a part of ON Semiconductor's portfolio of display devices that are known for their reliability and performance.

Key Features

• Character Type: The MAN6440 is an alphanumeric display capable of showing the digits 0-9 and letters A-F, making it suitable for hexadecimal representation.
• Display Color: It emits a vibrant red output, which is highly visible and can be easily read from a distance or in various lighting conditions.
• Character Size: The display features a 0.300-inch/7.62mm character height, which is large enough for clear visibility without taking up excessive space on a panel or board.
• Common Anode Configuration: The MAN6440 is designed with a common anode configuration, simplifying the process of multiplexing multiple displays.
• High Efficiency: ON Semiconductor's technology ensures that the MAN6440 is an energy-efficient solution, reducing the power consumption for your projects.
• Forward Voltage and Current: The typical forward voltage is 2.2V, and the maximum forward current is 30mA, making it compatible with a wide range of circuits and applications.

Applications

The MAN6440 is versatile and can be used in various settings, including:

• Consumer electronics
• Industrial control panels
• Instrumentation displays
• Medical equipment
• Automotive dashboards
• Communication devices

With its robust design and ON Semiconductor's commitment to quality, the MAN6440 alphanumeric display is an excellent choice for designers and engineers looking to enhance the user interface of their products. Whether you're building a simple DIY project or developing complex industrial equipment, the MAN6440 provides the reliability and performance you need in a display technology.
