TDSR1360 Vishay
Same model may have multiple batches, images only for reference.

TDSR1360

Part No TDSR1360
Manufacturer Vishay
Catalog Display Modules - LED Character and Numeric

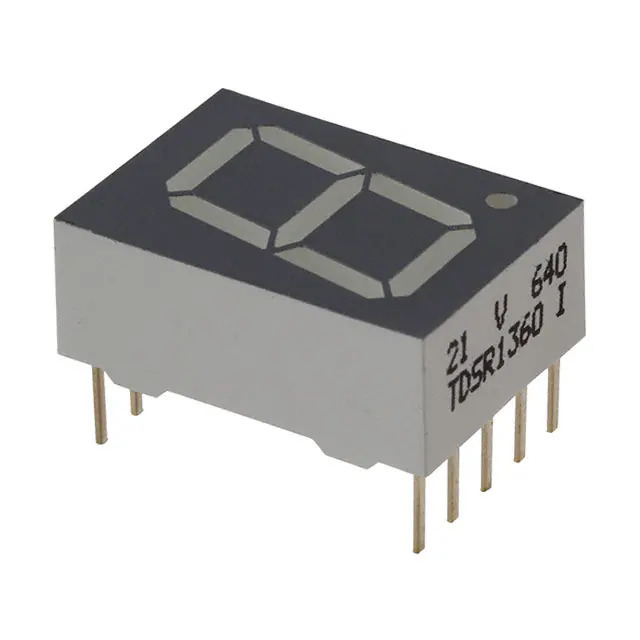

Description DISPLAY 7SEG 0.51" SGL RED 10DIP
Datasheet
TDSR1360 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Character and Numeric
Mfr Vishay Semiconductor Opto Division
Series -
Package Tube
Product Status Active
Number of Characters 1
Size / Dimension 0.689" H x 0.482" W x 0.252" D (17.50mm x 12.25mm x 6.40mm)
Digit/Alpha Size 0.51" (13.00mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Red
Voltage - Forward (Vf) (Typ) 1.8V
Current - Test 1mA
Millicandela Rating 3.6mcd
Wavelength - Peak 650nm
Power Dissipation (Max) 185mW
Package / Case 10-DIP (0.600", 15.24mm)
Base Product Number TDSR1360
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1368382-TDSR1360
Ultra Librarian 3D Model Ultra Librarian TDSR1360 CAD Model

Description

The 1368382-TDSR1360 is a LED character and numeric optoelectronic component manufactured by Vishay Semiconductor Opto Division.

  • Package: 10-DIP (0.600", 15.24mm)
  • Base Product Number: TDSR1360
  • Power Dissipation: 185mW
  • Forward Voltage: 1.8V @ 1mA
  • Peak Wavelength: 650nm
  • Color: Red
  • Display Type: 7-Segment
  • Digit/Alpha Size: 0.51" (13.00mm)
  • Millicandela Rating: 3.6mcd
