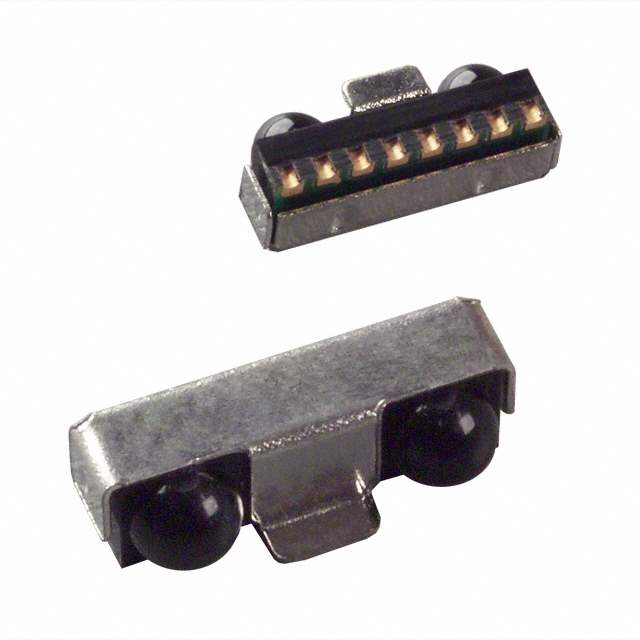

HSDL-3201#008 Real Image
Same model may have multiple batches, images only for reference.

HSDL-3201#008

Part No HSDL-3201#008
Manufacturer Lite-On Inc.
Catalog IrDA Transceiver Modules
Description IRDA TX/RX 0.1152Mbps 3.3V 10-Pin(8+2Tab) SMD T/R / TXRX IR 115.2KB/S 3V LOW PWR SMD
Datasheet
HSDL-3201#008 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Lite-On Inc.
Packaging Reel - TR
Data Rate 115.2kbs (SIR)
Supply Voltage 2.7 V to 3.6 V
Idle Current, Typ @ 25°C 100μA
Link Range, Low Power 20cm
Orientation Side View
Temperature Range - Operating -25°C to 85°C
Size 7.50mm x 2.80mm x 2.55mm
Standards IrDA 1.4
Shutdown Yes
Win Source Part Number 47938-HSDL-3201#008
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2,500
Family Name HSDL-3201#008
Introduction Date November 01, 2005
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian HSDL-3201#008 CAD Model

Description

The Lite-On Inc. HSDL-3201#008 is a high-quality electronic component that is designed to provide exceptional performance for various applications. It is a side view orientation with a data rate of 115.2kbs (SIR). It has a balance supply and demand status, with 2,500 quantity per package. This component is perfect for those who are looking for a reliable and efficient electronic component for their applications.
