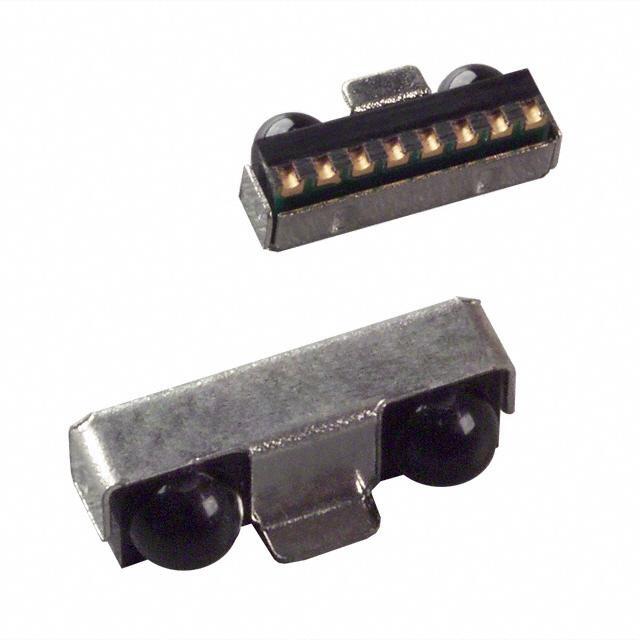

HSDL-3201#021

Part No HSDL-3201#021
Manufacturer Lite-On Inc.
Catalog IrDA Transceiver Modules
Description TXRX IR 115.2KB/S 3V LOW PWR SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - IrDA Transceiver Modules
Mfr Lite-On Inc.
Package Tape & Reel
Product Status Obsolete
Data Rate 115.2kbps
Voltage - Supply 2.7 V ~ 3.6 V
Idle Current, Typ @ 25°C 100 µA
Link Range, Low Power 20cm
Orientation Side View
Temperature Range - Operating -25°C ~ 85°C
Size 7.5mm x 3.35mm x 2.8mm
Standards IrDA 1.2
Shutdown Yes
Standard Package 2,500 pcs
Moisture Sensitivity Level (MSL) 4 (72 Hours)
ECCN EAR99
HTSUS 8541.49.1050
Win Source Part Number 147940-HSDL-3201#021
Ultra Librarian 3D Model Ultra Librarian HSDL-3201#021 CAD Model

Description

The HSDL-3201#021 is an IrDA transceiver module designed for short-range wireless data communication. It operates at a data rate of 115.2kbps and has a link range of 20cm in low power mode. The module is compact in size, measuring 7.5mm x 3.35mm x 2.8mm, making it suitable for space-constrained applications. It operates on a voltage supply of 2.7V to 3.6V and has an idle current of 100μA at 25°C. The HSDL-3201#021 is compliant with IrDA 1.2 standards and can be used in various sensor and transducer applications. It is supplied in a tape and reel package, with a standard package quantity of 2,500 pcs. Please note that this product is obsolete and may not be readily available in the market.
